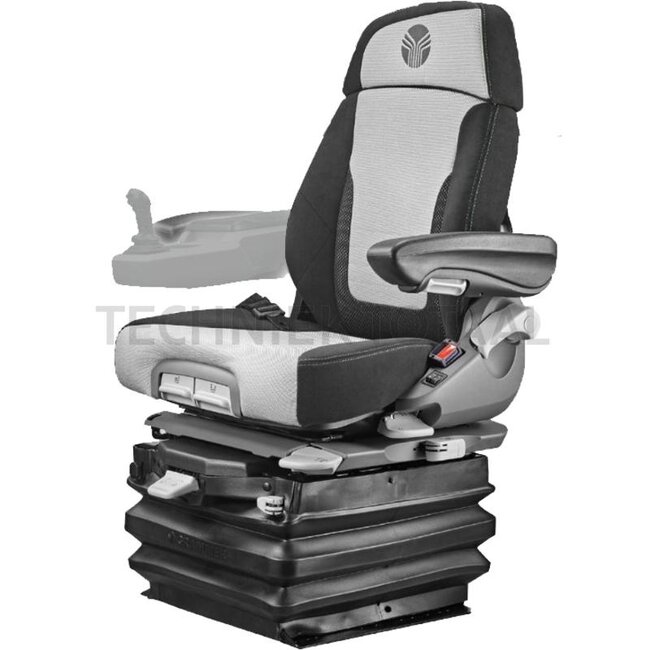

GRAMMER Maximo Dynamic Plus

MSG95AL/741

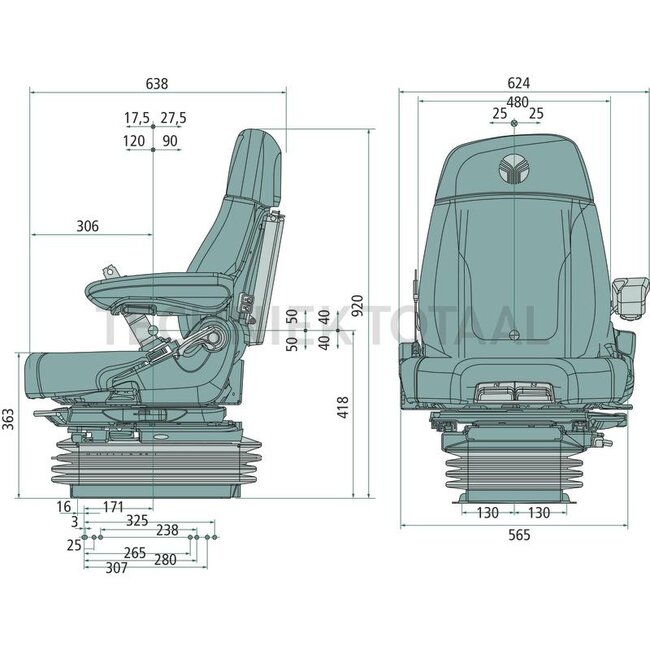

Technical data:

• Length (mm): 648
• • Storage pocket • APS: automatic positioning system • Left armrest, 80 x 380 mm, tilt adjustable • Swivel adaptor 7.5° left/15° right • Air suspension with 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (pneumatic) • Passive climate control system • Longitudinal adjustment 210 mm • Fore/aft isolator • Side horizontal suspension • Pneumatic lumbar support • Backrest tilt adjustment • Restraint system • Dualmotion back support • Seat cushion width 565 mm • 2-stage seat heater • Seat cushion depth and tilt adjustment • Dualmotion function (rotatable backrest extension)
• Upholstery type: Fabric / new design
• Armrest: Yes
• On-board voltage (V): 12
• Seat contact switch: Yes
• Rückenverlängerung: Yes
• Rotation: Yes
• Lordosenstütze: Pneumatic
• Joystick console: Yes
• Height (mm): 920

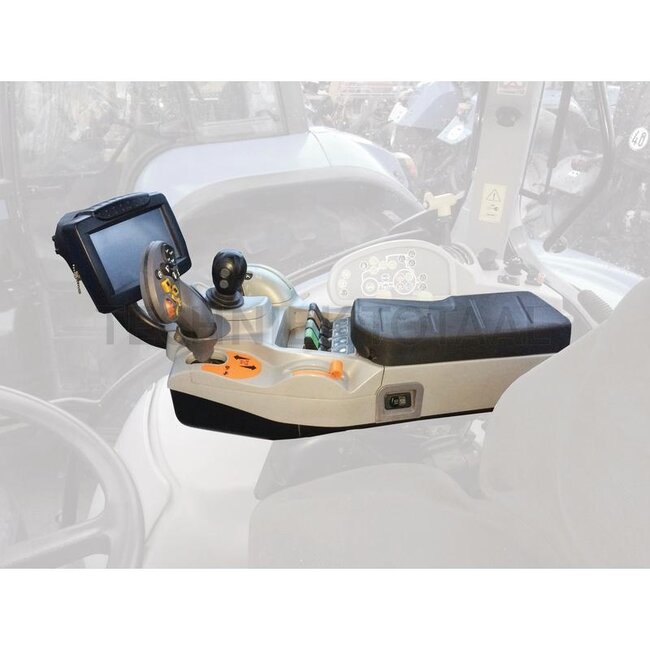

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
• Fore/aft isolator: Yes
• To fit: Case, Steyr, New Holland
• Seat width (mm): 565
• Version: In addition to the Dynamic Damping System, the Maximo Dynamic Plus also features the unique Dualmotion technology. The upper backrest rotates with the driver where required. Together with the swivel adaptor, this ensures perfect visibility and safe vehicle control when working in reverse, while at the same time providing optimum back support. Multifunction armrests can be connected using various adaptor plates.
• Suspension: Air suspension
• Side horizontal suspension: Yes
• Seat heater: Yes
• Track gauge (mm): 260
• Restraint system: Yes
• Seat type: MSG95AL/741

Suitable for:

Case IH: 743 XL, 745 XL, 844 XL, 845 XL, 856, 956, 1055, 1056, CS 86 (1/99-1/04), CS 86 (3/96-1/99), CS 90 (1/06-), CS 90 Pro (10/07-), CS 94 (1/99-1/04), CS 94 (3/96-1/99), CS 95 Pro (1/08-), CS 100 (1/06-), CS 100 (4/00-7/03), CS 100 (10/07-), CS 105 Pro (1/08-), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), 1255, 1455, Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 255, Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 7110, Magnum 7120, Magnum 7130, Magnum 7140, Magnum 7150, Magnum 7210, Magnum 7220, Magnum 7230, Magnum 7240, Magnum 7250, Magnum 8910, Magnum 8920, Magnum 8930, Magnum 8940, Magnum 8950, Maxxum 100 Tier 3 (1/07-), Maxxum 110 Tier 3 (1/07-), Maxxum 115 Tier 3 (1/07-), Maxxum 120 Tier 3 (1/07-), Maxxum 125 Tier 3 (1/07-), Maxxum 130 Tier 3 (1/07-), Maxxum 135, Maxxum 140 Tier 3 (1/07-), Maxxum 150, Maxxum 5120, Maxxum 5130, Maxxum 5140, Maxxum 5150, Maxxum 5220, Maxxum 5230, Maxxum 5240, Maxxum 5250, MX 100 Maxxum, MX 110 Maxxum, MX 120 Maxxum, MX 135 Maxxum, MX 150 Maxxum, MX 170 Maxxum, MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, MXM 120, MXM 130, MXM 135, MXM 140, MXM 150, MXM 155, MXM 165, MXM 175, MXM 180, MXM 190, MXU 100 (7/03-), MXU 110 (7/03-), MXU 115 (7/03-), MXU 125 (7/03-), MXU 135 (7/03-), Puma 115 (1/07-11/09), Puma 125 (1/07-11/09), Puma 130 (1/11-), Puma 140 (1/07-11/09), Puma 145 (1/11-), Puma 150 Tier 4b (4/14-), Puma 155 (1/07-11/09), Puma 160 (1/11-), Puma 165 (1/07-), Puma 165 (1/09-), Puma 170 (12/10-), Puma 175, Puma 180 (1/07-), Puma 180 (1/09-), Puma 185 (12/10-), Puma 195 (1/07-), Puma 195 (1/09-), Puma 200 (12/10-), Puma 210 (1/07-), Puma 210 (1/09-), Puma 215 (12/10-), Puma 240, Steiger 9310, Steiger 9330, Steiger 9350, Steiger 9370, Steiger 9380, Steiger 9390, STX 275, STX 325
