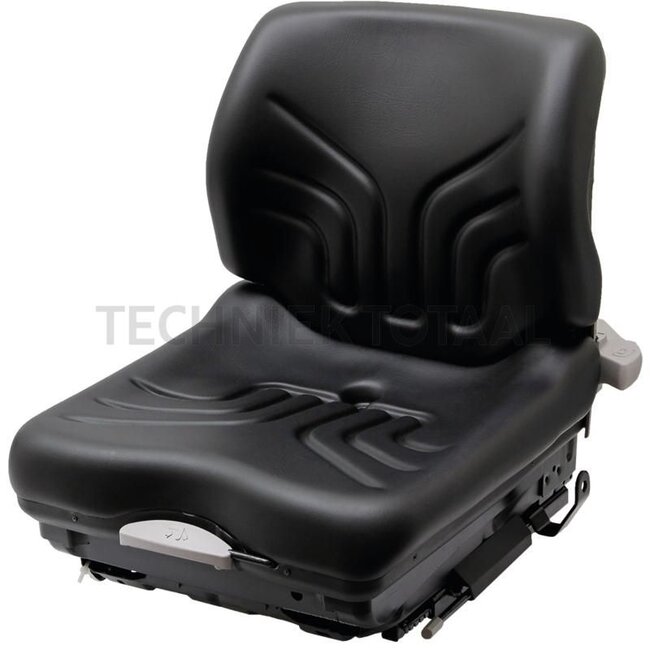

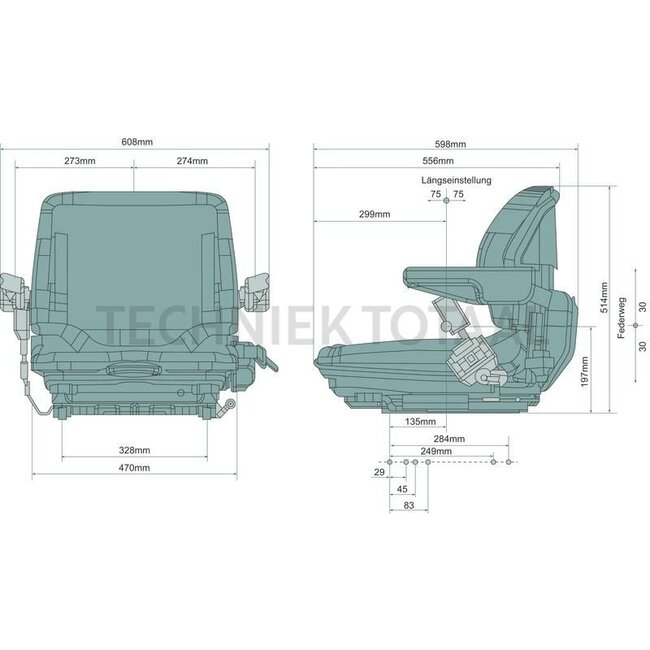

Forklift seat model MSG20 with PVC upholstery, seat width and seat cushion width 470 mm, length 598 mm, height 514 mm and track gauge 330 mm. The seat has mechanical suspension with 60 mm suspension travel and a hydraulic damper, and the weight adjustment ranges from 50 to 130 kg. Longitudinal adjustment is 210 mm, and the backrest tilts in 4 steps of 10° via a rocker. The belt holder is pre-assembled; restraint system, seat heater and armrest are optional. Suitable for forklifts from Jungheinrich and Still.
Reference numbers:51095100, 0224113
Diverse, EZS 570, 580, 590 ab 04.2015, 134015, DFG, DFG 63 HC 01/1991 - 03/1993, DFG 75 HC 01/1991 - 03/1993, EZS, EZS 570 04/2015 ->, EZS 570 06/2008 ->, EZS 580 04/2015 ->, EZS 590 04/2015 ->, TFG, TFG 15 AF 11/1993 - 12/1994, TFG 20 AF 11/1993 - 12/1994
Diverse, 134015, R, R06-06 (0126, 0606), R60, R60-20 (6012, 6013), R60-25 (6012, 6013), R60-35 (6015, 6016), R60-40 (6015, 6016), R70, R70-16 compact (7074D-7076D), R70-16T compact (7077-7079), R70-18 compact (7074D-7076D), R70-18T compact (7077-7079), R70-20 (7062-7064), R70-20 compact (7074D-7076D), R70-20i (7065i-7067i ASM), R70-20T (7068-7070), R70-20T compact (7077-7079), R70-25 (7062-7064), R70-25i (7065i-7067i ASM), R70-25T (7068-7070), R70-30 (7062-7064), R70-30i (7065i-7067i ASM), R70-30T (7068-7070)
| Article number | 240134015 |
|---|---|
| Weight | 19,6 kg |
| Seat type | MSG20 |
| Suspension | Mechanical |
| Upholstery type | PVC |
| Track gauge | 330 mm |
| Seat width | 470 mm |
| Restraint system | Optional |
| Seat heater | Optional |
| Length | 598 mm |
| Height | 514 mm |
| Seat cushion width | 470 mm |
| Technical data | • Comfort seat with mechanical suspension and hydraulic damper • Suspension travel 60 mm • Longitudinal adjustment 210 mm • Weight adjustment 50 - 130 kg, mechanical • Backrest tilt adjustment via rocker, in 4 steps of 10° (tilt kinematics) • Belt holder pre-assembled |
| Version | MSG 20 seats are designed for the vibrations experienced by forklifts, and offer a suspension travel of 60 mm plus a weight adjustment range of 50 to 130 kg. The individual weight adjustment ensures excellent suspension comfort. The seat can be positioned within a range of 150 mm or 210 mm, giving enough space for any body size and work situation. |
| Gauge | 330 |
| Armrest | Optional |
