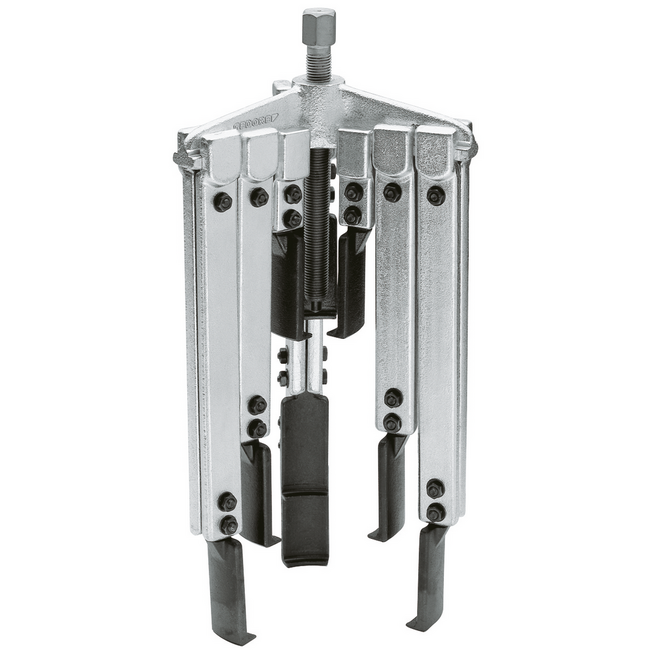

3-jaw puller with nine slim legs in three lengths up to 250 mm for removing bearings and pulleys in hard-to-reach places, rated at 2.5 t.
- Three-arm puller with 9 small hooks in three lengths
- Particularly suitable for hard-to-reach areas
Technical data
- Item number: 1.07/AS
- EAN: 4036976104127
- Number of pieces: 10
- Weight: 4.95 kg
- Set contents: 107/1A03 traverse 3-arm 180 mm 106/A-100-S puller hook slim 100 mm (3x) 106/A-200-S puller hook slim 200 mm (3x) 106/A-250-S puller hook slim 250 mm (3x) E-1.1406140 spindle SW 17, M14x1.5, 140 mm
- Spindle thread size: M14x1.5x140
- Hook Foot Width at Usable Surface c1: 29.5 mm
- Usable Hook Foot Depth d2: 7.5 mm
- Hook Foot Thickness at Tip e1: 3.7 mm
- Width across flats: 17 mm
- Tractive force (max.): 2.5 t
- Clamping width (max.) external pulling: 130 mm
- Depth of hooked foot: 13.5 mm
