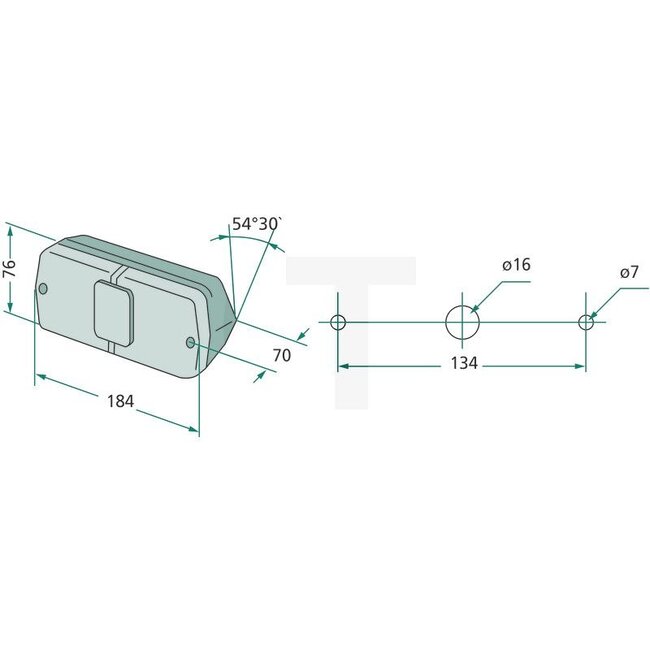

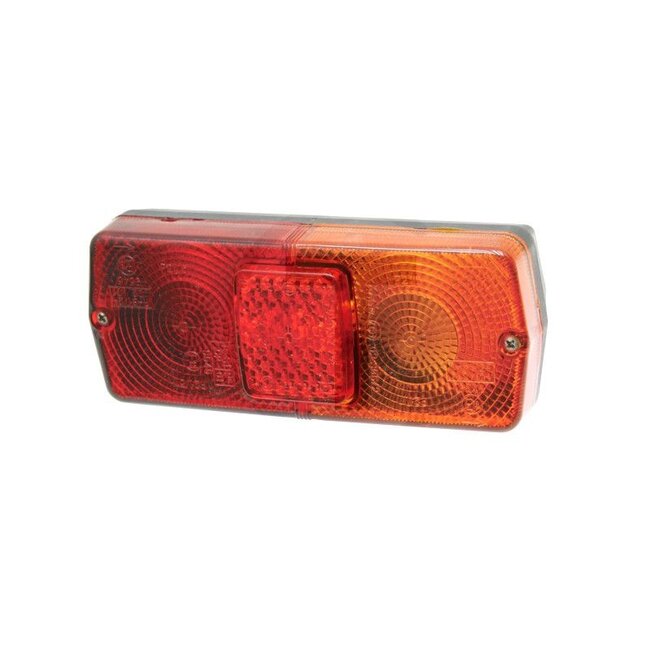

Rear light left, 184 x 78 x 70 mm, 12 V, by Cobo. It is rectangular with bevelled short sides, has a blade terminal connection and a cable length of 160 mm (0.16 m). It carries the ECE test mark and has a power consumption of 21 W. It is a bulb type with a hole spacing of 134 mm, for screwed, horizontal installation. The rear light offers indicator, rear and brake light functions. Bulbs are not included. Fits tractors by Massey Ferguson.
Reference numbers:1009472, 1678868M91, 1680334M91, 3405153M91, 1808843M92
| Article number | 22702368000 |
|---|---|
| Weight | 360 g |
| Bulb | 12V21WK / P21W 12V21/5WK / P21/5W |
| Connection | Blade terminal |
| Width | 184 mm |
| Form | Rectangular, short sides bevelled |
| Height | 78 mm |
| Cable length | 0.16 m |
| Hole spacing | 134 mm |
| Dimensions W x H x D | 184 x 78 x 70 mm |
| Depth | 70 mm |
| Installation location | Left |
| Nominal voltage | 12 V |
| Cable length | 160 mm |
| Test mark | ECE |
| Power consumption | 21 W |
| Type | Bulb |
| Light function | Indicator light, rear light, brake light |
| Bulbs included | No |
| Mounting type | Screwed, horizontal installation |
