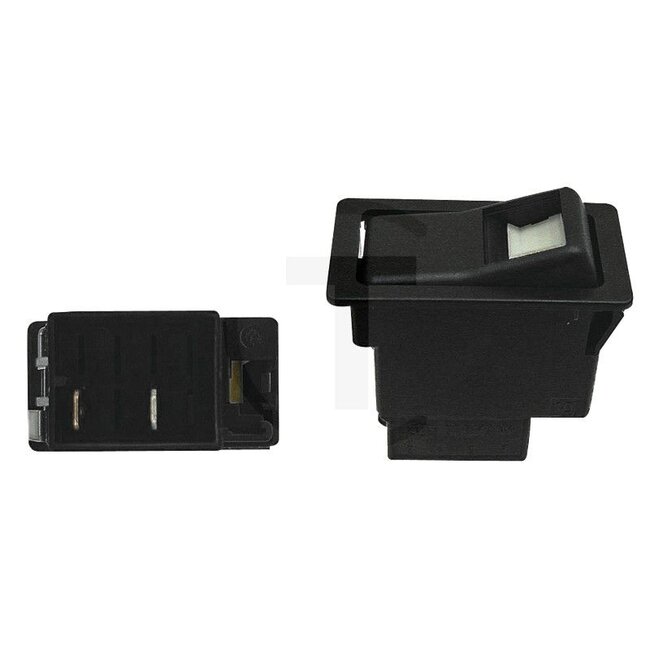

Rocker switch, momentary, with 2 blade connections of 6.3 mm and 4 connections. The switch is designed for location light without function light and has 2 switch positions: 0: off and 1: on. Power rating 16 A at 12 V and 8 A at 24 V. Operated by rocker. Fits machines from Jungheinrich and Case IH.
Reference numbers:6GM 004 570-061, 51121677, 3516034M92, 0 412047 0
Mammut 6900, Mammut 7400, Mammut 7800, Serie Mammut
TFG 316s 07/2004 - 08/2009, TFG 540 07/2004 - 06/2012, TFG 545 07/2004 - 06/2012, TFG 550 07/2004 - 06/2012, Diverse, Diverse
| Article number | 4556GM 004570061 |
|---|---|
| EAN | 4082300190403 |
| Weight | 24 g |

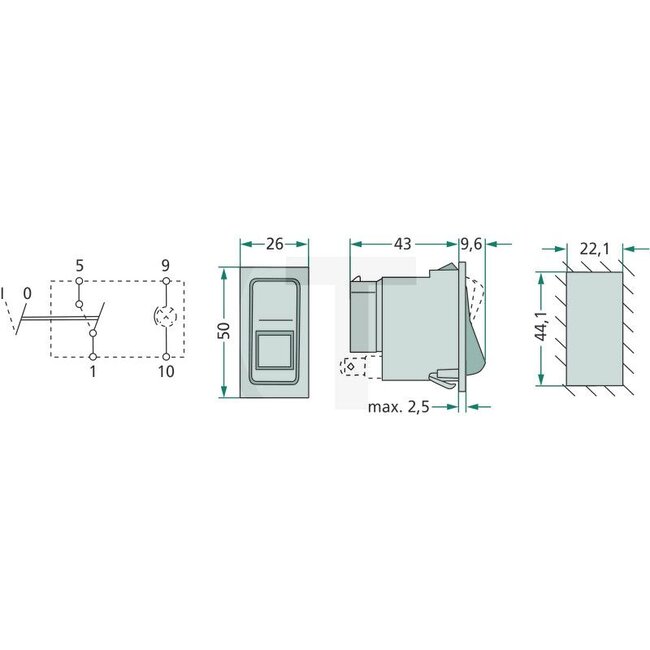

| Version | Designed for location light, without function light, 2 blade terminals 6.3 mm, 2 switch positions: 0: off, 1: on, power rating 16 A at 12 V, 8 A at 24 V, rocker operation |
| To operate | Wippbetätigung |
| Equipment | I->0 |
| Connections | 4 |
