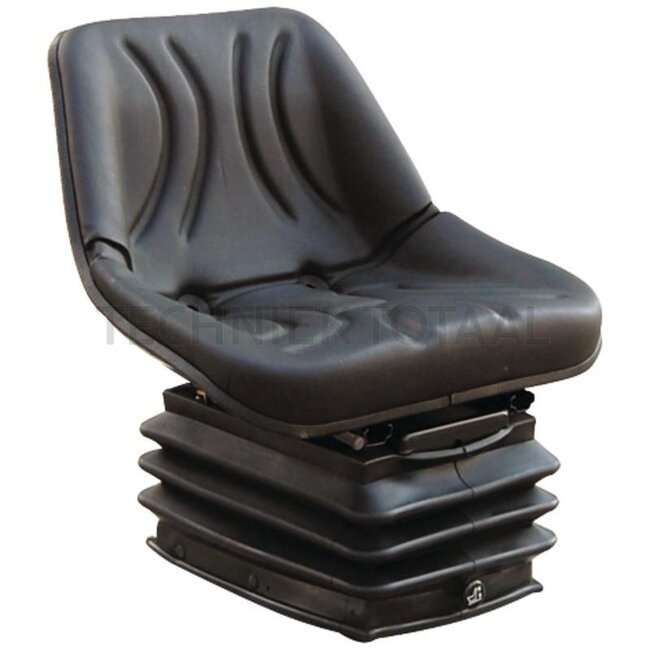

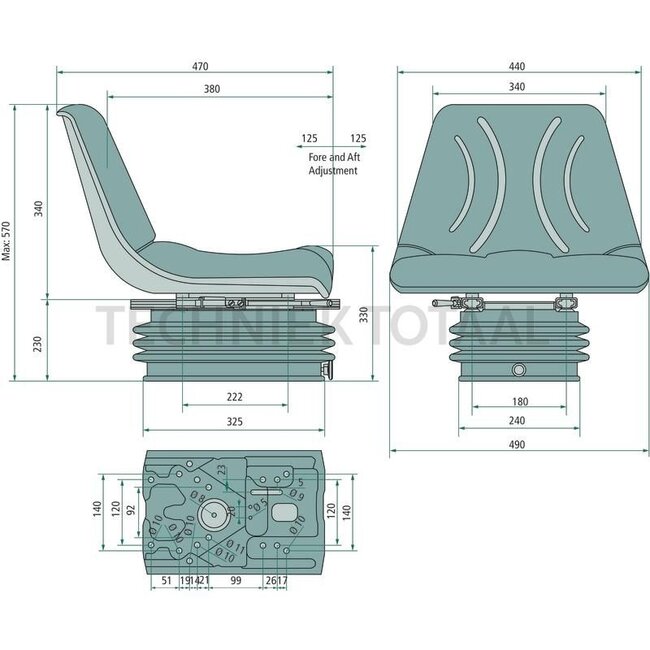

Tractor seat with air suspension and PVC upholstery, seat width 480 mm, 12 V. Suspension stroke is 100 mm, with hydraulic shock absorber. Seat height is adjustable by 60 mm, and longitudinal adjustment with guides has a range of 105 mm. The seat is air-sprung with a 12 volt compressor and has suspension adjustment for weights from 50 kg to 130 kg. Upholstery is integral polyurethane with vacuum panelling in PVC. Base plate measures 180 x 260 mm. CE homologation EU 1322/2014, ECE R16.04. Height 570 mm, length 470 mm.
| Article number | 240920045 |
|---|---|
| EAN | 4059139133154 |
| Weight | 100 kg |
| Technical data | ● Air-sprung with 12 volt compressor ● Sprung seat with suspension adjustment for weights from 50 kg to 130 kg ● Suspension stroke 100 mm, suspension with hydraulic shock absorber ● Longitudinal adjustment with guides, adjustment range 105 mm ● Seat height adjustment 60 mm ● Upholstery made of integral polyurethane with vacuum panelling made of PVC ● Base plate 180 x 260 mm CE homologation EU 1322/2014 ECE R16.04 |
| Height | 570 mm |
| Length | 470 mm |
| Suspension | Air-sprung |
| Track gauge | 225 mm |
| Gauge | Up to 225 |
| Upholstery type | PVC |
| Seat contact switch | No |
| Rotation | No |
| Seat width | 480 mm |
| Joystick console | No |
| Side horizontal suspension | No |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Seat heater | No |
