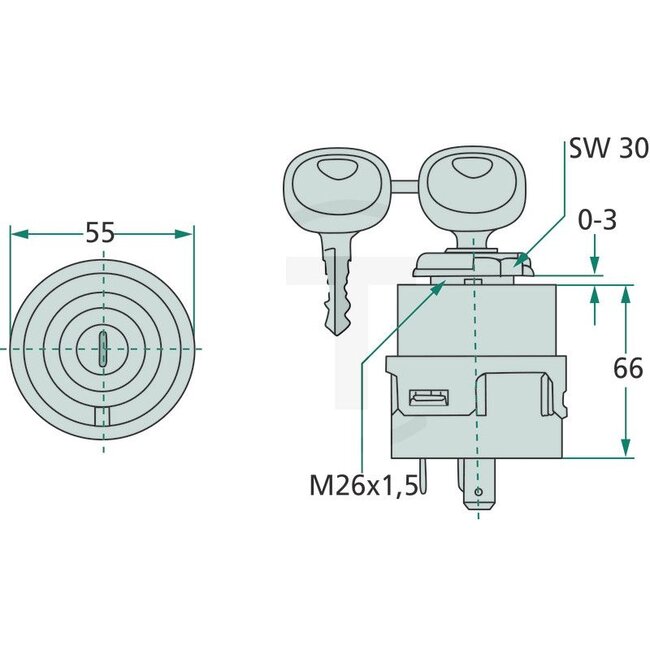

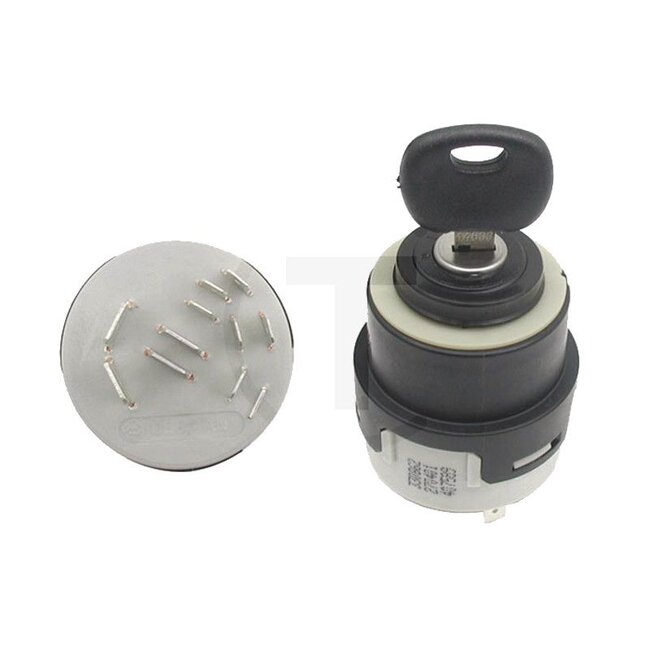

Start switch for 12 to 24 V, with a mounting opening of Ø 26.5 mm and 10 plugs. The switch is equipped with 2 moulded reversible safety keys made of nickel silver for central locking. It is waterproof to DIN 400 50 and IP63, and dustproof and waterproof in the contact area. The switch positions are 0 - ignition - preheat - start. The blade terminals measure 4 x 9.5 mm and 6 x 6.3 mm. Fits Fendt.
Reference numbers:205 004 01, G210902020040
Serie Farmer 300, Farmer 308 (Typ 178), Farmer 309 (Typ 186), Serie Geräteträger, GT 380 (Typ 380)
| Article number | 50770596036 |
|---|---|
| EAN | 4026736057879 |
| Weight | 180 g |
| Version | With 2 moulded reversible safety keys made of nickel silver For central locking, waterproof DIN 400 50, IP63, dustproof and waterproof in contact area, switch positions: 0 - ignition - preheat - start, easy locking, mounting opening Ø 26.5 mm, blade terminals 4 x 9.5 mm / 6 x 6.3 mm |
| Switching stages | 0-1-2-3 |
| Plug | 10 |
| Voltage range | 12-24V |
| Locking number | 14603 |
| Diameter | 26,5 mm |
