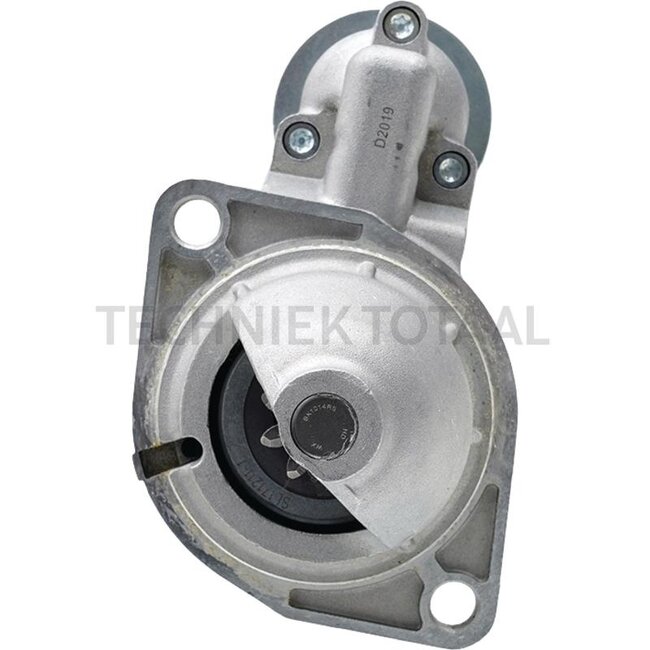

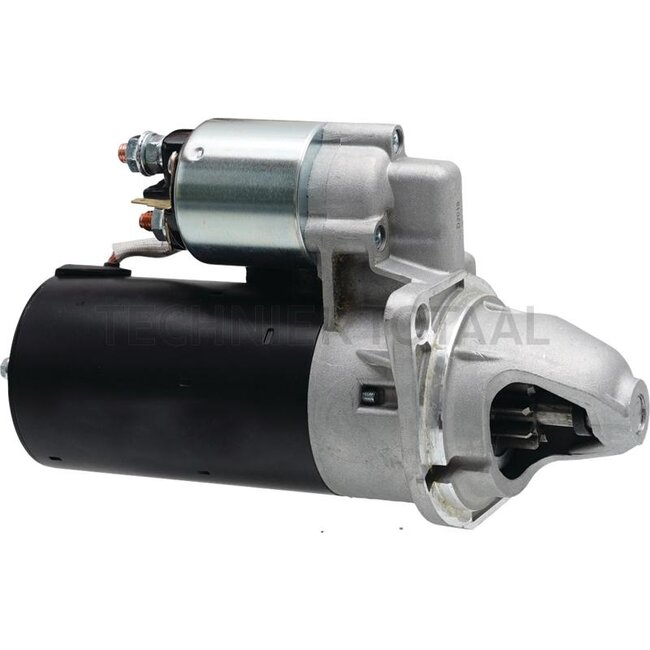

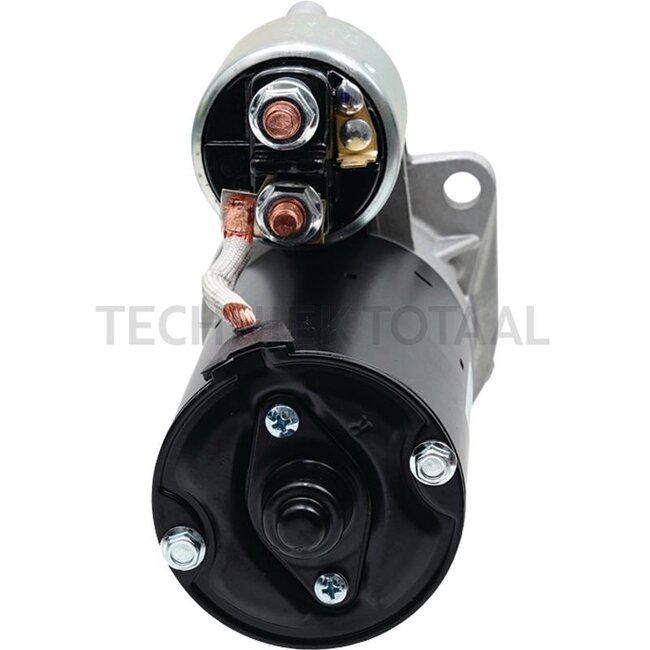

GRANIT Starter motor with reduction gear 12V 1.4 kW 9 teeth clockwise
Replaces: 115816, F032115816
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 1.4
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 10.6 / 105.0
- Spacing flange to flywheel (mm): 28.0
- Installation length (mm): 184.5
- Fitting Ø (mm): 76.2
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
