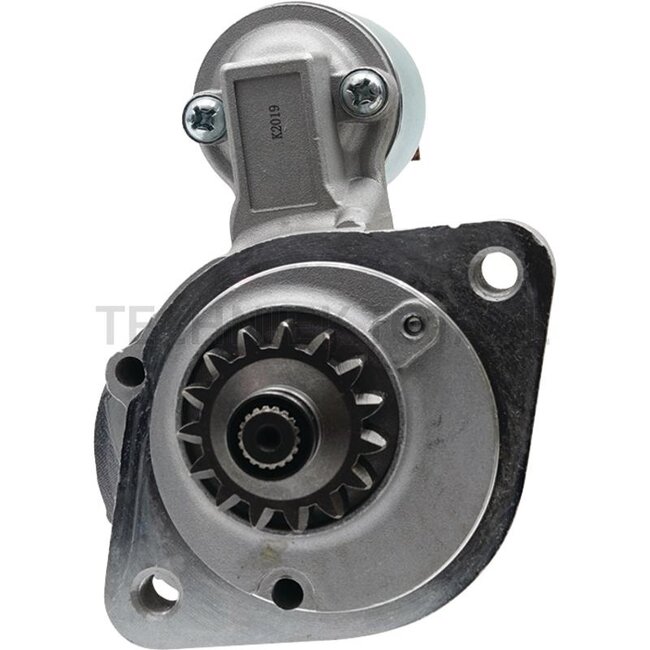

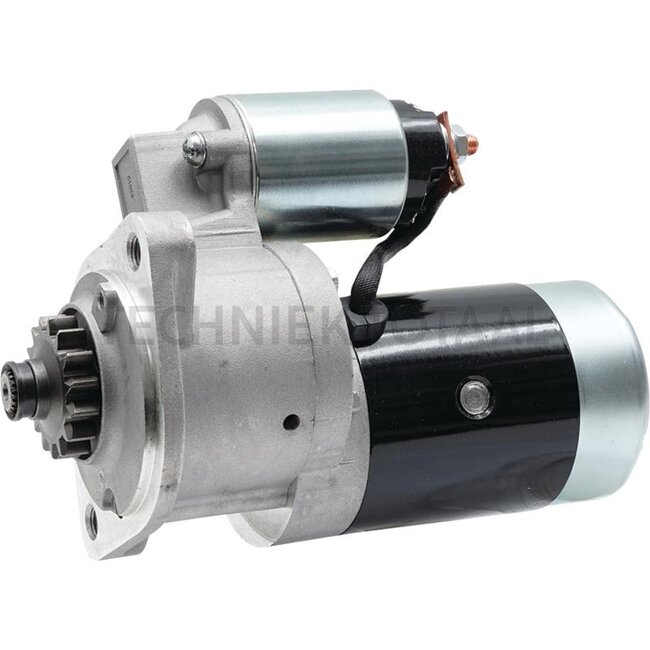

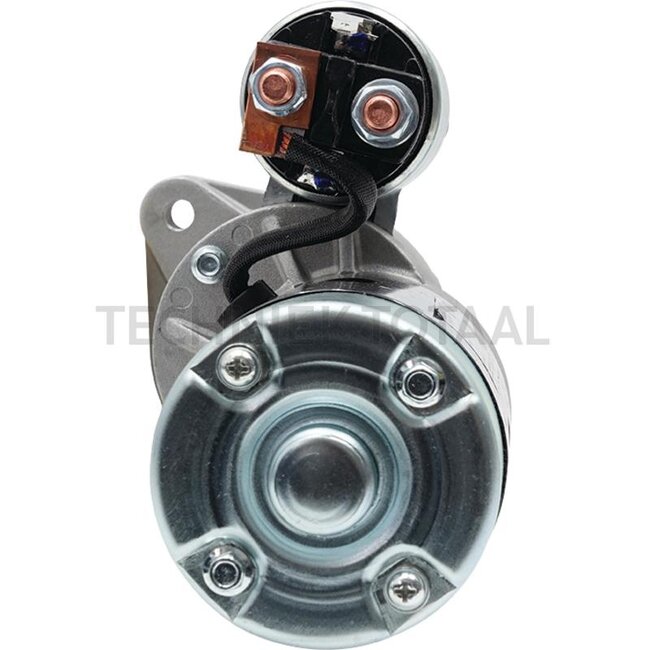

GRANIT Starter motor with reduction gear 12V 1.6 kW 15 teeth clockwise
Replaces: 112178, F032112178
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 1.6
- No. of pinion teeth: 15
- Holes / PCD (mm): 2 x M10 / 105.0
- Spacing flange to flywheel (mm): 17.0
- Installation length (mm): 196.5
- Fitting Ø (mm): 77.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
Suitable for:
Volvo CE / BM: EC13 XR/XTV, EC14, EC15B XR, EC15B XT/XTV, EC20B XT/XTV
