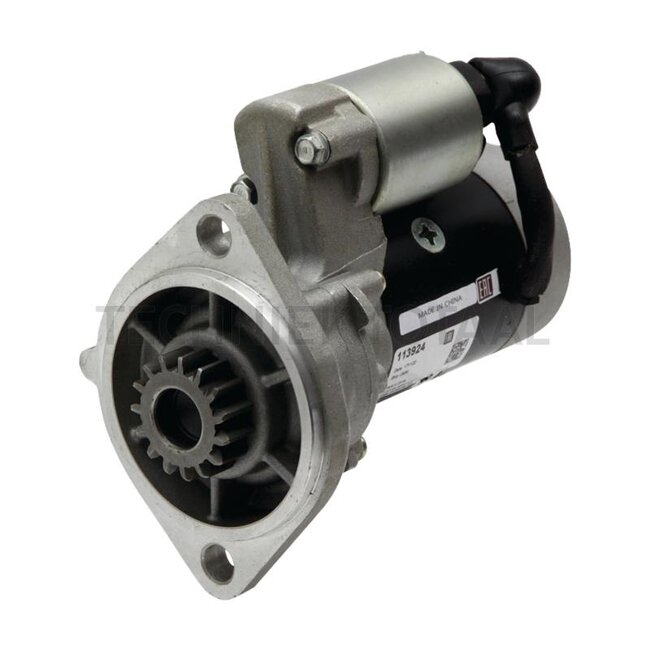

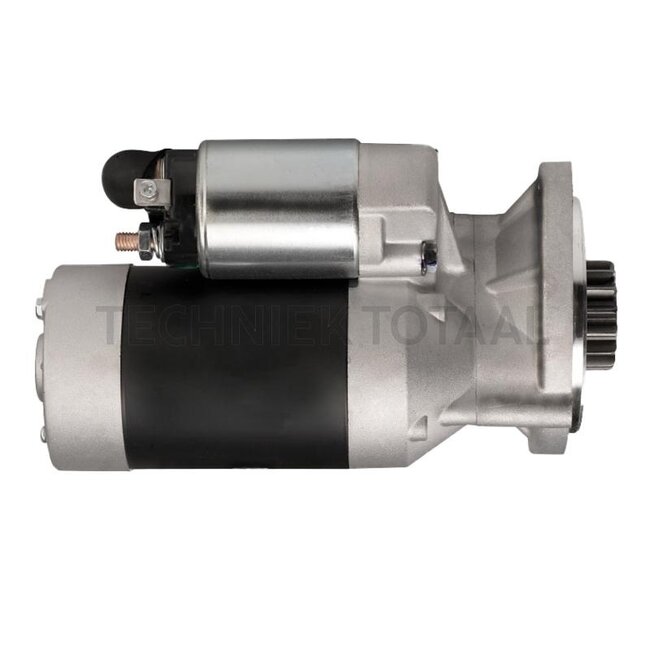

GRANIT Starter motor with reduction gear 12V 2.0 kW 15 teeth clockwise
Replaces: 113924, F032113924
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.0
- No. of pinion teeth: 15
- Holes / PCD (mm): 2 x 13.0 / 120.0
- Spacing flange to flywheel (mm): 19.8
- Installation length (mm): 217.2
- Fitting Ø (mm): 94.86
- Installation angle (°): -
- Direction of rotation: clockwise
Suitable for:
Takeuchi: TB035 (Yanmar 3TN84TL-RTBY)
Yanmar: B37-2 (3TNE88-B1), B37-2A (3TNE88-B1), B37V (3TNE88-B1A)
