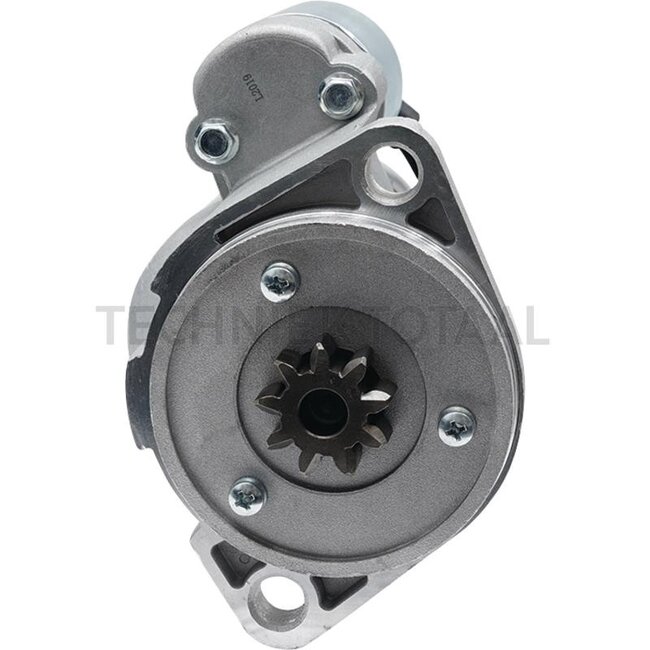

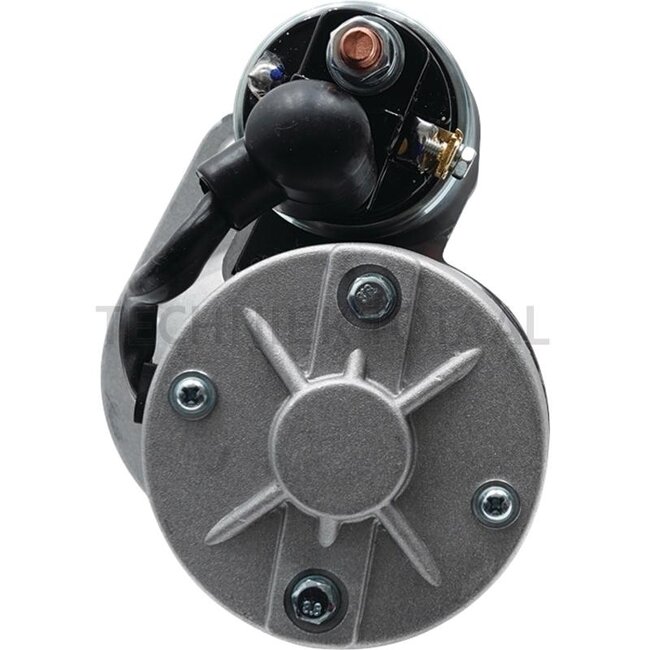

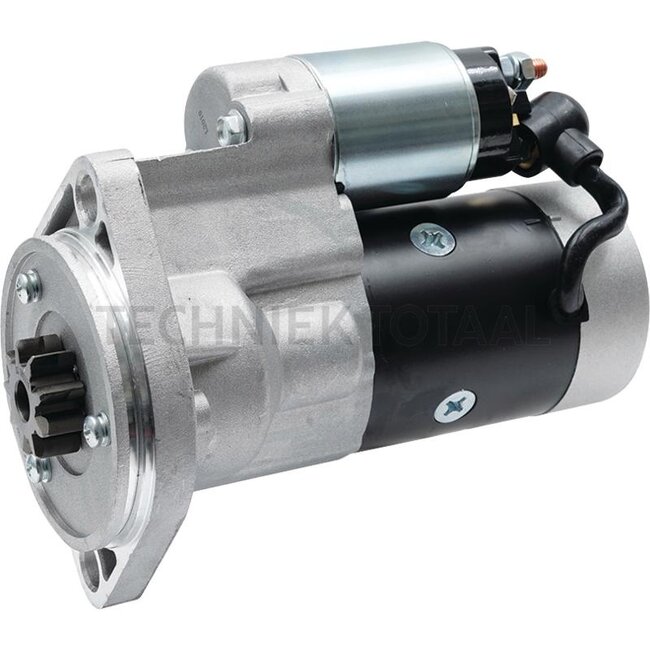

GRANIT Starter motor with reduction gear 12V 2.3 kW 9 teeth clockwise
Replaces: 112676, F032112676
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.3
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 13.5 / 120
- Spacing flange to flywheel (mm): 21
- Installation length (mm): 208
- Fitting Ø (mm): 95.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
