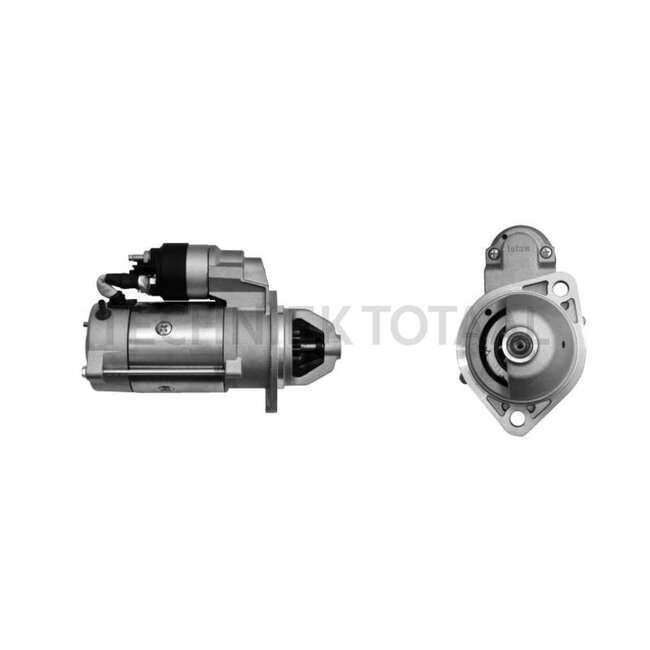

MAHLE Starter motor with reduction gear 12V 2.6 kW 9 teeth clockwise

Replaces: MS 28

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 2.6
• No. of pinion teeth: 9
• Holes / PCD (mm): 2 x 10.9 / 105.0
• Spacing flange to flywheel (mm): 25.5
• Fitting Ø (mm): 82.5
• Installation angle (°): r 35
• Direction of rotation: clockwise
• Additional information: Dust-tight

Suitable for:

Kramer: KRAMER 750 - Type 346-01, KRAMER 380 Serie 2 - Type 351-01, KRAMER 480 - Type 342-01, KRAMER 480 Serie 2 - Type 351-02, KRAMER 480T - Type 342-10, KRAMER 580 - Type 343-00, KRAMER 580 Serie 2 - Type 351-03, KRAMER 580T - Type 343-10, KRAMER 680 - Type 343-01, KRAMER 680 Serie 2 - Type 352-01, KRAMER 680T - Type 352-10, KRAMER 780 Serie 2 - Type 352-02, KRAMER 780T - Type 344-10

Wacker Neuson: 680T, 750T, 850, 1101C, 1150, 901s, WL34 -> SN 3025886, WL44 -> SN 3027262, WL48, WL50, WL54

Weidemann: 2070 CX LP (Deutz), 2070 CX LP T, 2070 CX80, 2070 CX80 LP T, 2070 CX80 T, 2070 CX80LP, 3070 CX60, 3070 CX60 LP T, 3070 CX60 T, 3070 CX60LP, 3070 CX80, 3070 CX80 LP T, 3070 CX80 T, 3070 CX80LP, 3080 LP, 3080 LP T, 4070 CX 80 T, 4070 CX80, 4070 CX80 LP, 4070 CX80 LP T, 4080 LP, 4080 LP T, 5625 CX80
