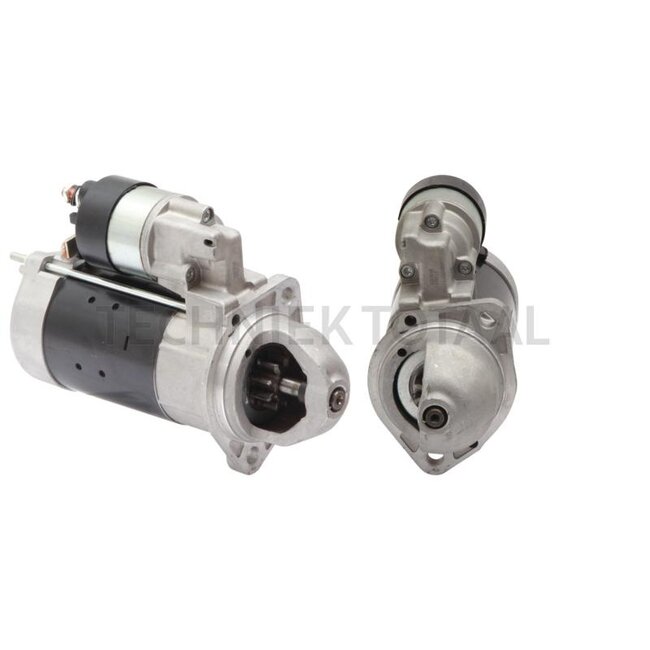

GRANIT Starter motor with reduction gear 12V 2.6 kW 9 teeth

Replaces: 113181, F032113181, DEM174FALSCH KEIN GR

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 2.6
• No. of pinion teeth: 9
• Holes / PCD (mm): 2 x 11.0 / 105
• Spacing flange to flywheel (mm): 23.0
• Installation length (mm): 187.0
• Fitting Ø (mm): 82.5
• Installation angle (°): 5
• Additional information: Connections: B+ (M8)

Suitable for:

JCB: 406 B (Deutz D2011 L04), 409 (Deutz TD2011 L04)

Kramer: KRAMER 420T - Type 312-00, KRAMER 421 - Type 301-01, KRAMER 521 - Type 302-00, KRAMER 521 - Type 302-01, KRAMER 750 - Type 346-01, KRAMER 750T - Type 346-10, KRAMER 850 - Type 346-02, KRAMER 950 - Type 347-01, KRAMER 1150 - Type 347-02, KRAMER 380 - Type 342-00, KRAMER 380 Serie 2 - Type 351-01, KRAMER 480 Serie 2 - Type 351-02, KRAMER 480T - Type 342-10, KRAMER 580 - Type 343-00, KRAMER 580 Serie 2 - Type 351-03, KRAMER 580T - Type 343-10, KRAMER 680 - Type 343-01, KRAMER 680 Serie 2 - Type 352-01, KRAMER 680T - Type 352-10, KRAMER 780 Serie 2 - Type 352-02, KRAMER 780T - Type 344-10

Wacker Neuson: 680T, 750T, 850, 1101C, 1150, 901s, WL34 -> SN 3025886, WL44 -> SN 3027262, WL48, WL50, WL54
