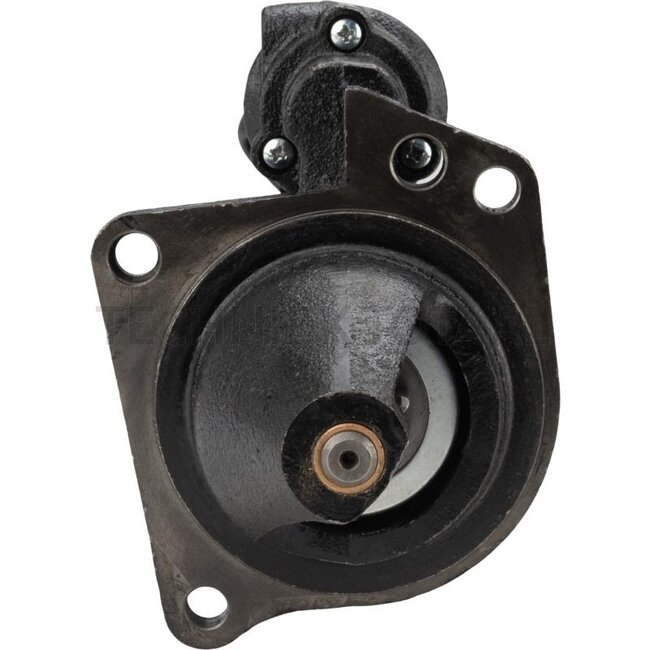

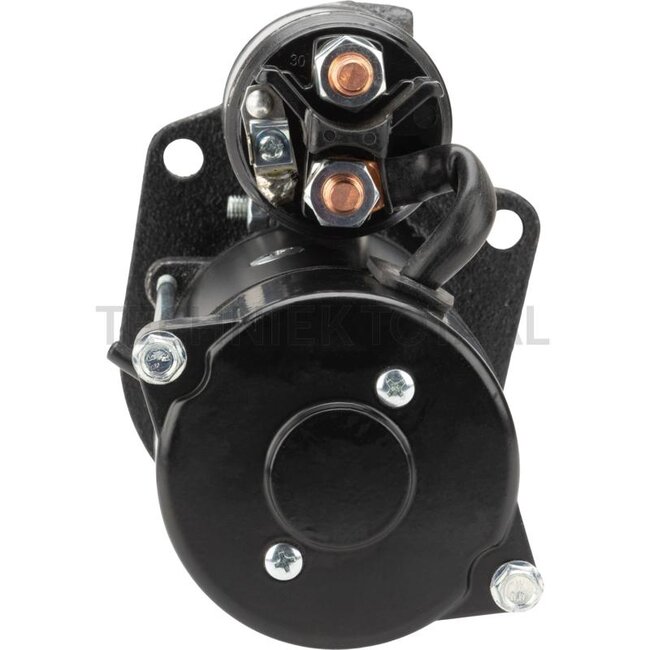

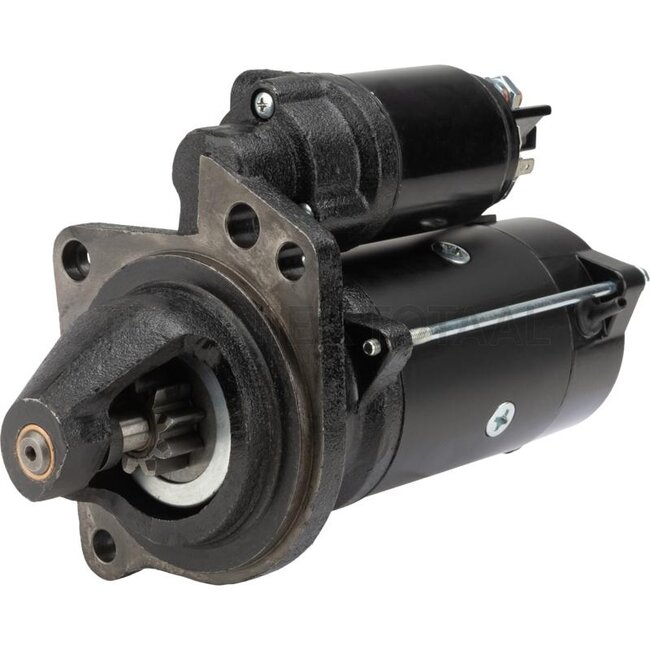

GRANIT Starter motor with reduction gear 12V 3.2 kW 9 teeth clockwise
Replaces: DEM705
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 3.2
- No. of pinion teeth: 9
- Holes / PCD (mm): 3 x 12.2 / 146.0
- Spacing flange to flywheel (mm): 27.0
- Installation length (mm): 205
- Fitting Ø (mm): 110.0
- Installation angle (°): l 55
- Direction of rotation: clockwise
Suitable for:
Benfra: 9.09, 9.10, 215
Fiat: 666, 766, 670, 680, 780, 880, 1380, 80-90, 605, 655, 765, 855, 615, 600, 640, 650, 1000, 1300
Fiat Allis: FL 4
Laverda: 3350, 3450, 3600, M 112, M 132
New Holland: T4030, TL80, TL90, TL100, TN95
