New Holland TL100 tractor parts & technical data

Sorting out the electrics, hitch or lights on a New Holland TL100? This TL series page lists more than 300 parts, trailer couplings and lighting included.

340 parts found for New Holland TL100
Show:
GRAMMER Tractor seat air suspended Maximo COMFORT Plus fabric, seat width 530 mm
GRAMMER
Super comfort seat with air suspension and 12V compressor. APS: automatic positioning system. Armrests height adjustable and folding. Weight, height a... More
Super comfort seat with air suspension and 12V compressor. APS: automa...
€1.657,67 €1.369,98
LED main headlight 12/24 V, 168 x 107 x 81,5 mm, H4
Voltage range (V): 10 - 30 | Nominal voltage (V): 12 / 24 | Connection: H4 | Power consumption (W): 55 | Light colour (K): 6000 | Housing material: Al... More
Voltage range (V): 10 - 30 | Nominal voltage (V): 12 / 24 | Connection...
€124,74 €103,09 €114,76 €94,84
You save 8%
Scharmüller Drawbar K80 rail 390 mm, pin Ø 25 mm, 4000 kg, black
Scharmüller
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 4000 kg. D-value: 120 kN. Plate height: 160 mm. Colour: Black. Overhang: ... More
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.616,17 €1.335,68 €1.271,24 €1.050,61
You save 21%
GRAMMER Tractor seat air suspended fabric, 480 mm, 12 V, MSG95G/721
GRAMMER
Comfort seat with air suspension and 12V compressor. Armrests, height adjustable and foldable. Weight adjustment, height adjustment 60 mm and Longitud... More
Comfort seat with air suspension and 12V compressor. Armrests, height ...
€1.051,50 €869,01
Walterscheid Top drawbar rail 309 mm, pin Ø 22 mm, coupling pin 31 mm
Walterscheid
Rail width: 309 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecting pin: 31 mm. Load capacity: 2000 kg. D-value: 92 kN. Colour: Black. Descriptio... More
Rail width: 309 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecti...
€1.104,81 €913,07 €873,47 €721,88
You save 21%
ROCKINGER Forced steering welded both ends, lock K50
ROCKINGER
Lock: K50. Assembly notes: Both ends. To fit: Rockinger ball insert RO825X. More
Lock: K50. Assembly notes: Both ends. To fit: Rockinger ball insert RO...
€1.405,31 €1.161,41 €1.082,77 €894,85
You save 23%
Sauermann Piton Fix rail 320 mm, locking pin Ø 30 mm, guide 20 mm, 3000 kg
Sauermann
Height adjustable, rotating bolt system to fit as System Sauermann. More
Height adjustable, rotating bolt system to fit as System Sauermann.
€1.736,14 €1.434,83 €1.647,25 €1.361,36
You save 5%
ROCKINGER Trailer coupling hitch pin 30,6 mm, rail 330 mm, 2000 kg, black
ROCKINGER
Rail width (mm): 330 | Guide width (mm): 32 | Drawbar eye: DIN 11026 40 mm, DIN 11043 40 mm, DIN 74054 40 mm | D-value (kN): 120,0 | Type: RO 850 D | ... More
Rail width (mm): 330 | Guide width (mm): 32 | Drawbar eye: DIN 11026 4...
€1.126,27 €930,80 €917,77 €758,49
You save 19%
FEBI Engine oil filter Ø 107,67 mm, height 129,92 mm, thread 3/4"-16 UNF
€59,44 €49,12 €10,98 €9,07
You save 82%
Exhaust pipe on the cab pillar New Holland TL, Case IH JXU
Version: On the cab pillar. More
Version: On the cab pillar.
€237,82 €196,55 €218,79 €180,82
You save 8%

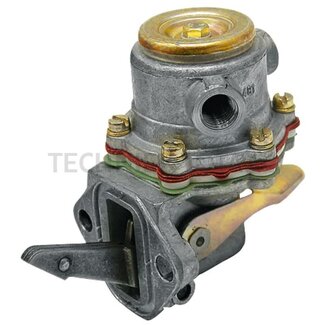

Feed pump 2 bores, hole spacing 45 mm, flange 38 mm
Version: 2 holes, Hole spacing: 45 mm, Flange to lever end: 38 mm. Menke no.: 49521. More
Version: 2 holes, Hole spacing: 45 mm, Flange to lever end: 38 mm. Men...
€32,69 €27,02 €30,07 €24,86
You save 8%
Walterscheid Inner part ball 80 rail width 309 mm, pin Ø 22 mm, 3000 kg
Walterscheid
D-value (kN): 89.3 | Colour: Black | Assembly notes: Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be... More
D-value (kN): 89.3 | Colour: Black | Assembly notes: Suitable for conn...
€2.146,48 €1.773,95 €1.697,03 €1.402,50
You save 21%
Donaldson Maintenance switch air filter electric, 2 blade connections
Donaldson
Donaldson no.: X770062 | Version: Differential pressure switch 2 blade terminals | Type: Electrical More
Donaldson no.: X770062 | Version: Differential pressure switch 2 blade...
€35,42 €29,27 €32,59 €26,93
You save 8%
LUK Thrust bearing PTO clutch 75 x 115 x 20 mm
LUK
Dimensions (mm): 75 x 115 x 20 More
Dimensions (mm): 75 x 115 x 20
€183,54 €151,69 €168,86 €139,55
You save 8%
Cobo Work light rectangular H3 12/24 V, 158 x 96 mm, right
Cobo
Nominal voltage (V): 12 / 24 | Bulb: H3 | Height (mm): 96 | Installation location: Right | Color: Black | Fixing: Jointed bracket | Form: Rectangular ... More
Nominal voltage (V): 12 / 24 | Bulb: H3 | Height (mm): 96 | Installati...
€83,93 €69,36 €77,22 €63,81
You save 8%
Eaton Driven gear wheel transmission
Eaton
Reference no.: 5169606 More
Reference no.: 5169606
€136,74 €113,01 €125,80 €103,97
You save 8%
Thrust bearing single PTO clutch 75 x 115 x 20 mm
Dimensions (mm): 75 x 115 x 20 More
Dimensions (mm): 75 x 115 x 20
€30,45 €25,17
Eaton Drive pinion transmission 2,65 kg
Eaton
Reference no.: 5172047 More
Reference no.: 5172047
€418,94 €346,23 €385,42 €318,53
You save 8%
ROCKINGER Trailer coupling without manual plug rail 330 mm, 2000 kg
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecting pin: 31,5 mm. Load capacity: 2000 kg. D-value: 97,1 kN. Colour: Black. More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecti...
€944,77 €780,80 €727,93 €601,59
You save 23%
Cobo Work light rectangular H3, steel bracket Case IH, New Holland
Cobo
Material: Polyamide | Bulb: H3 | Color: Black | Fixing: Steel bracket | Form: Rectangular More
Material: Polyamide | Bulb: H3 | Color: Black | Fixing: Steel bracket ...
€77,64 €64,17 €71,43 €59,03
You save 8%
Scharmüller Automatic hitch adjustable, rail 390 mm, pin 31 mm, 120 kN
Scharmüller
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail width (mm): 390 | Detent pin Ø (mm): 25 | Load capacity (kg): 2500 | Descripti... More
Lock: Automatic | Connecting pin (mm): 31 | D-value (kN): 120,0 | Rail...
€1.157,46 €956,58 €1.064,86 €880,05
You save 8%
Expansion valve airco 1/2 inch - 3/8 inch o-ring, 195 g
Connection thread: M | Connection thread E: # 6, 3/8"" O-ring | Equipment: O-ring | Connection thread A: # 8, 1/2"" O-ring | Weight (g): 195 More
Connection thread: M | Connection thread E: # 6, 3/8"" O-ring | Equipm...
€57,45 €47,48 €52,85 €43,68
You save 8%
FEBI Alternator 14 V / 33 A, form A, flange 73,5 mm, pulley-Ø 80,0 mm
FEBI
To fit as: Antonio Carraro, Fiat, Lamborghini More
To fit as: Antonio Carraro, Fiat, Lamborghini
€278,30 €230,00 €150,06 €124,02
You save 46%
MANN-FILTER Secondary filter main insert C14101, C14202/1, C14210/2
MANN-FILTER
Height: 318 mm. Outer Ø: 79 / 82 mm. Inner Ø: 77 mm. A: 79 mm. B: 77 mm. D: 82 mm. MANN no.: CF850/2. H: 318 mm. Fleetguard no.: AF25484. Menke no.:... More
Height: 318 mm. Outer Ø: 79 / 82 mm. Inner Ø: 77 mm. A: 79 mm. B: 77...
€33,70 €27,85
Sealing ring lift arm shaft 23 x 37 x 11 mm Ford, Case IH, Fiat, New Holland
Dimensions: 23 x 37 x 11 mm. More
Dimensions: 23 x 37 x 11 mm.
€25,23 €20,85
Scharmüller Drawbar K80 manual, rail 390 mm, pin Ø 25 mm, 3000 kg, black
Scharmüller
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 3000 kg. D-value: 89,3 kN. Plate height: 160 mm. Colour: Black. Overhang:... More
Rail width: 390 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.422,99 €1.176,02 €1.297,49 €1.072,31
You save 9%
Cobo Contact switch mechanical brake light, clutch, PTO shaft, 12 / 24 V
Cobo
Version: For brake light, clutch, four-wheel drive, PTO, 12/24 V, power rating: 12 V: 5-12 A, 24 V: 3-8 A, protection class: IP67, NC = normally close... More
Version: For brake light, clutch, four-wheel drive, PTO, 12/24 V, powe...
€32,65 €26,98 €30,04 €24,82
You save 8%
HELLA Alternator 14 V / 45 A, pulley-Ø 93 mm, 1 groove
HELLA
No. of grooves: 1 | Charging current (A): 45 | Nominal voltage (V): 14 | Additional information: With pulley | Pulley Ø (mm): 93 | Nominal values (V ... More
No. of grooves: 1 | Charging current (A): 45 | Nominal voltage (V): 14...
€305,58 €252,55 €235,44 €194,58
You save 23%
Mirror 236 x 180 mm unheated, rod-Ø 16 - 20 mm - 25 pieces
Rod Ø (mm): 16 - 20 | Width (mm): 180 | Notes: Manual operation | Additional information: Unheated | Installation location: Right/left | To fit: Case... More
Rod Ø (mm): 16 - 20 | Width (mm): 180 | Notes: Manual operation | Add...
€503,82 €416,38 €463,51 €383,07
You save 8%
AKS-Dasis Condenser without dryer Case IH, Fiat, Ford, New Holland
AKS-Dasis
Weight (kg): 3 | Weight (g): 3000 | Supplementary set: without dryer More
Weight (kg): 3 | Weight (g): 3000 | Supplementary set: without dryer
€580,51 €479,76 €534,07 €441,38
You save 8%
Expansion valve 3/8 - 5/8 inch o-ring
Equipment: O-ring | Connection thread E: # 6, 3/8"" O-ring | Connection thread A: # 10, 5/8"" O-ring More
Equipment: O-ring | Connection thread E: # 6, 3/8"" O-ring | Connectio...
€48,74 €40,28 €44,84 €37,06
You save 8%
BOSCH Injection nozzle DLLA 136 S 1000, opening pressure 230-242, S 2 mm
BOSCH
Part no.: 38017637. Opening pressure: 230-242 bar. S: 2 mm. Reference no.: 4800030. Bosch type formula: DLLA 136 S 1000. More
Part no.: 38017637. Opening pressure: 230-242 bar. S: 2 mm. Reference ...
€44,32 €36,63 €37,57 €31,05
You save 15%
ROCKINGER Drawbar without sensor rail 330 mm, coupling pin 38 mm, black
ROCKINGER
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecting pin: 38 mm. Load capacity: 2000 kg. D-value: 120,0 kN. Colour: Black. Descrip... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Connecti...
€1.008,33 €833,33 €776,89 €642,06
You save 23%
ROCKINGER Adapter plate rail width 330 mm, 93,6 kN, 2500 kg, 160 x 100 mm
ROCKINGER
Colour: Black | Hole pattern (mm): 160 x 100 | Guide width (mm): 32 | Detent pin Ø (mm): 25 | D-value (kN): 93,6 | Load capacity (kg): 2500 | Rail wi... More
Colour: Black | Hole pattern (mm): 160 x 100 | Guide width (mm): 32 | ...
€651,63 €538,54 €627,60 €518,67
You save 4%
Gear wheel main shaft 1e gear 21/22 teeth Fiat, New Holland
€49,12 €40,60 €45,19 €37,35
You save 8%
MAHLE Air conditioning compressor 12 V, pulley Ø 132 mm, 2 grooves, V/TO
MAHLE
No. of grooves: 2 | Nominal voltage (V): 12 | Refrigerant: R 134a | Connection: V/TO | Suitable oil: PAG 46 | Pulley Ø (mm): 132 More
No. of grooves: 2 | Nominal voltage (V): 12 | Refrigerant: R 134a | Co...
€513,19 €424,12 €461,06 €381,04
You save 10%
BOSCH Micro relays 12 V / 30 - 20 A, 5-pin, 6,3 mm blade connection
BOSCH
Version: 12 V / 30 - 20 A Without bracket, 5-pin, blade terminal 6.3 mm More
Version: 12 V / 30 - 20 A Without bracket, 5-pin, blade terminal 6.3 m...
€11,20 €9,26
Filter dryer Ø 62 mm, 203 mm, connection thread F/M 3/8 inch
Connection thread A: 3/8"" | Connection thread: F/M | Outer Ø (mm): 62 | Length (mm): 203 | Weight (g): 400 | Connection thread E: 3/8"" | Dimensions... More
Connection thread A: 3/8"" | Connection thread: F/M | Outer Ø (mm): 6...
€58,64 €48,46 €53,95 €44,59
You save 8%
SANDEN Air conditioning compressor 12 V, pulley Ø 119 mm, 2 grooves, 200 ccm oil
SANDEN
No. of grooves: 2 | Nominal voltage (V): 12 | Pulley Ø (mm): 119 | Fixing: EM | Suitable oil: SP 10 | Oil quantity (ccm): 200 | Refrigerant: R 134a More
No. of grooves: 2 | Nominal voltage (V): 12 | Pulley Ø (mm): 119 | Fi...
€732,23 €605,15 €673,65 €556,74
You save 8%
Pilot bearing 17 x 47 x 14 mm
Dimensions (mm): 17 x 47 x 14 More
Dimensions (mm): 17 x 47 x 14
€6,59 €5,44
Steering cylinder Case IH, Fiat, Ford, New Holland
Reference no.: 5189893 More
Reference no.: 5189893
€400,19 €330,74 €368,17 €304,28
You save 8%
MAHLE Alternator 14 V, 80 A, flange 67 mm, with fan
MAHLE
Belt width (mm) / type: - | Flange size (mm): 67,0 | Installation angle (°): 0 | Nominal voltage (V): 14 | Nominal values (V / A): 14 / 80 | Addition... More
Belt width (mm) / type: - | Flange size (mm): 67,0 | Installation angl...
€331,08 €273,62 €198,29 €163,88
You save 40%
Eaton Drive pinion transmission 1,37 kg
Eaton
Reference no.: 5179673 More
Reference no.: 5179673
€228,28 €188,66 €210,02 €173,57
You save 8%
Eaton Gear wheel transmission 1,57 kg Case IH, Fiat, Ford, New Holland
Eaton
Reference no.: 5125013 More
Reference no.: 5125013
€326,26 €269,64 €300,16 €248,07
You save 8%
FEBI Thermostat Ø 54 mm, 79 °C Ford, Case IH, Fiat, Steyr, New Holland
FEBI
To fit as: New Holland TD 55D, 65D, 75D, 85D, 95D, TL 70, 80, 90, 100, TN 55, 65, 70, 75, 80, 90, 95, L 60, 65, 75, 85, 95 More
To fit as: New Holland TD 55D, 65D, 75D, 85D, 95D, TL 70, 80, 90, 100,...
€30,67 €25,35 €15,73 €13,00
You save 49%
MAHLE Gear reduction starter 12 V, 4,2 kW, 9 teeth, Ø 110 mm, clockwise
€639,84 €528,79 €383,22 €316,71
You save 40%
Gear wheel PTO shaft 14 / 57 teeth Fiat, New Holland
Number of teeth: 14/57. More
Number of teeth: 14/57.
€120,71 €99,76 €111,05 €91,78
You save 8%
Planetary gear transmission 19 / 14 teeth New Holland
Number of teeth: 19/14. More
Number of teeth: 19/14.
€59,07 €48,82 €54,34 €44,91
You save 8%
Showing 1 - 48 of 340

New Holland TL100 parts at a glance

Contractors and dairy farmers tend to keep a TL100 for a long time, and that is when the parts outside a normal service start to matter: an air conditioning compressor that has failed, a gear in the gearbox, an injector that no longer sprays cleanly. This page gathers more than 300 New Holland TL100 parts from makers such as GRANIT, ROCKINGER, Cobo, LUK and MAHLE.

  • Engine and fuel: injection nozzles, piston sealing rings, injector O-rings and thermostat gaskets
  • Driveline: gearbox gear wheels and thrust bearings
  • Electrics: alternators, starter motors and contact switches, such as the gear switch with connector
  • Cab and air con: compressors, air con V-belts and rear window gas struts
  • Hitching: drawbars and Piton Fix

Getting the cab air con working again

A TL100 with working air con is a different machine in July. When the cooling stops, the compressor is not always to blame. Look at the V-belt first, because a cracked or slack belt will not drive the compressor properly. If the compressor does need replacing, have an air conditioning specialist evacuate and recharge the system with the correct amount of oil, and fit a new belt while everything is apart.

From type plate to the right part

The TL100 belongs to the New Holland TL series, and the model and serial number are on the type plate. Many parts for this tractor are also used on Case IH, Fiat, Ford and Steyr models, which the product description will show. When in doubt, go by the reference number on the old part, especially for a gear wheel, a thrust bearing or an injector. With gears, the tooth count is a quick first check: count the teeth on the old one and compare with the description on this page.

With injectors it pays to test or replace the whole set together. One new nozzle next to three worn ones gives uneven combustion and a rough-running engine.

If the starter turns slowly or just clicks, do not condemn it straight away. Check battery voltage, the earth strap and the terminals for corrosion first. Only when all of that is sound and the fault remains is a new starter motor worth fitting. Disconnect the battery before touching the alternator or starter terminals.

The rest of the TL line

If a smaller TL works alongside your TL100, it has its own page with the parts that fit. That saves time when you order for several tractors at once:

For the other New Holland ranges, start from New Holland parts.

Brands
  • View more
Price
Min Max
Close
Choose your language
Choose your currency
€

Recently added

Total incl. tax
€0,00
0
Compare
Start comparison
This product has been added to your cart
