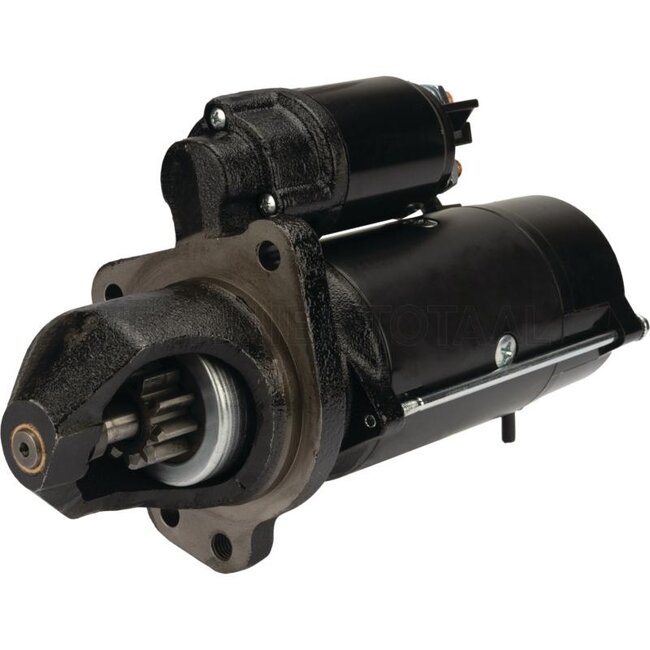

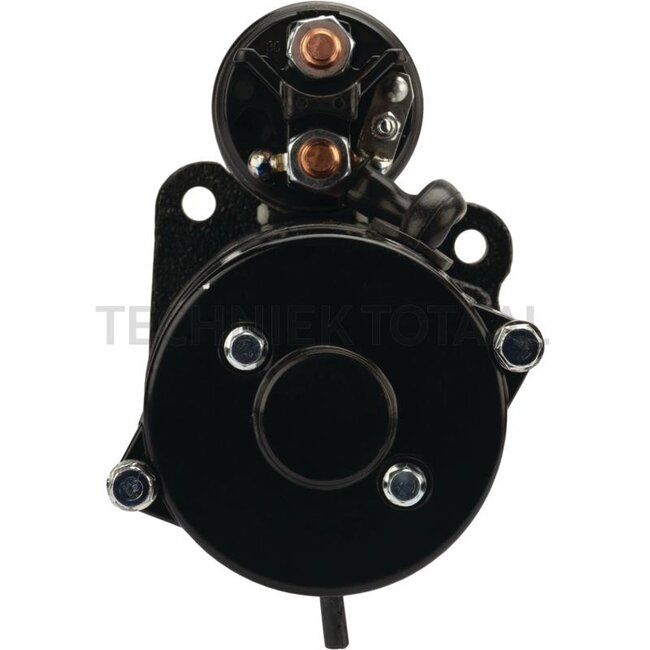

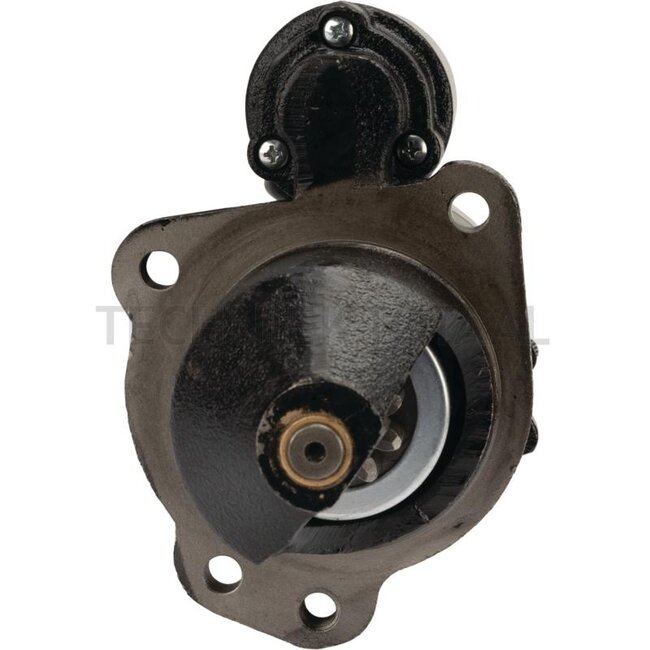

GRANIT Starter motor with reduction gear 12V 4.2 kW 10 teeth clockwise
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 4.2
- No. of pinion teeth: 10
- Holes / PCD (mm): 3 x 11.0 / 127.0
- Spacing flange to flywheel (mm): 95.5
- Installation length (mm): 224.0
- Fitting Ø (mm): 89.0
- Installation angle (°): l 55
- Direction of rotation: clockwise
Suitable for:
John Deere: 6506, 6600, 6800, 6900, 6510, 6610, 6810, 6910, SE6510, SE6610
