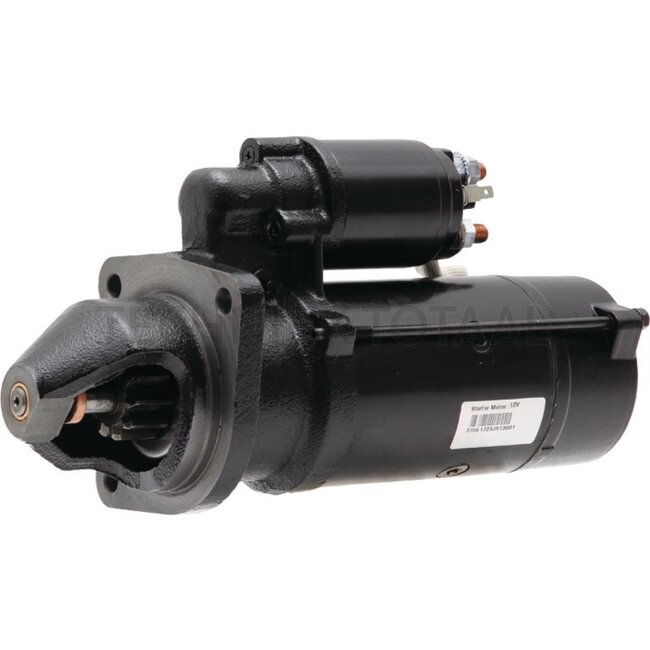

Starter motor with reduction gear 12V 4.2 kW 10 teeth clockwise

Replaces: DEM708041P

Technical data:

Nominal voltage (V): 12
Nominal power (kW): 4.2
No. of pinion teeth: 10
Holes / PCD (mm): 3 x 10.7 / 127.0
Spacing flange to flywheel (mm): 28.5
Installation length (mm): 255.0
Fitting Ø (mm): 89.0
Installation angle (°): l 40
Direction of rotation: clockwise

Suitable for:

Case IH: 1690

Fermec: 640 B, 650 B, 660 B, 750, 760, 860, 960, 965

Landini: Atlas 70, Atlas 80, Atlas 85, Atlas 90, Atlas 100, Blizzard 65, Blizzard 75

Massey Ferguson: 185, 174, 184, 194, 206, 274, 284, 294, 307, 372, 375, 382, 383, 390, 390T, 393, 396, 398, 399, 362, 365, 487, 506, 510, 520, 525, 595, 3050, 3060, 3065, 3070, 3075

McCormick: B-Max 90, B-Max 100, C 70 L, C 80 L, C 100 L, C-Max 80, C-Max 90, C-Max 100, C-Max 105, CX 70, CX 80, CX 85, CX 90, CX 100, CX 110, F 80, F 90, F 100, MC 80, MC 90, MC 100, MC 110, MC 115, MC 125, MC 130, MTX 110, MTX 140, MTX 155, MTX 175, MTX 200, T 70, T 80, T 90, T 100, T-Max 80, T-Max 90, T-Max 100, T-Max 110

Ursus: 4512, 4514
