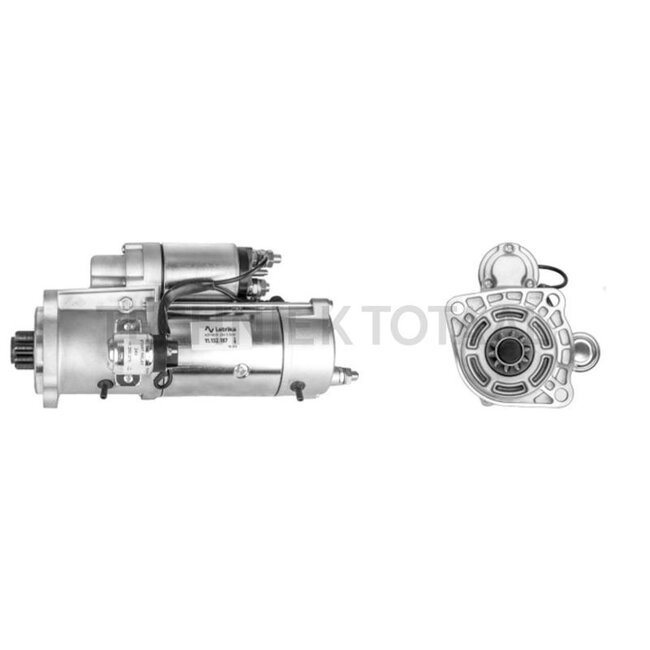

MAHLE Starter motor with reduction gear 24V 5.5 kW 10 teeth clockwise
Replaces: MS 147
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 5.5
- No. of pinion teeth: 10
- Holes / PCD (mm): 3 x 10.9 / 127.0
- Spacing flange to flywheel (mm): 32.5
- Fitting Ø (mm): 89.0
- Installation angle (°): r 40
- Direction of rotation: clockwise
- Additional information: Freely ejecting (without transmission bell housing), with auxiliary start relay, earth: terminal 31, connection: terminal 50a
