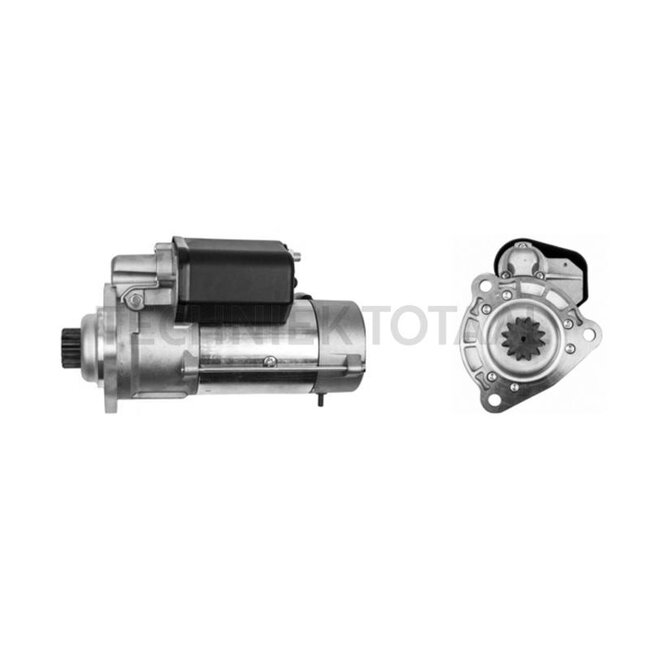

MAHLE Starter motor with reduction gear 24V 6.5 kW 12 teeth clockwise
Replaces: MS 212
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 6.5
- No. of pinion teeth: 12
- Holes / PCD (mm): 3 x 13.5 / 146.0
- Spacing flange to flywheel (mm): 51.0
- Fitting Ø (mm): 92.0
- Installation angle (°): l 35
- Direction of rotation: clockwise
- Additional information: Freely ejecting (without transmission bell housing), with auxiliary start relay
Suitable for:
John Deere: 7280, 7380, 7480, 7580, 7780, S 680, S 685, S 690
Prestolite
MAHLE
