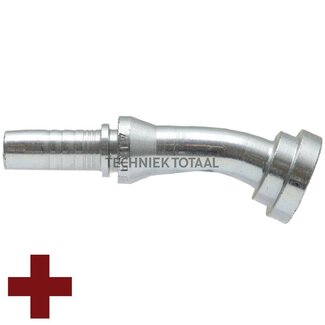

Manuli Swage fitting Interlock CAT SAE flange 1", 30°, DN 25

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43930-16-16

Technical data:

• Type formula: SFS 30°
• O-ring: 32.9 x 3.5
• Comparison no.: M43930-16-16
• A (mm): 108
• Flange: 1"
• B (mm): 20
• D (inches): 1"
• D (mm): 47.7
• Nominal width: DN 25 - 1"
• Description: SAE flange, heavy, 30°
• E (mm): 23
• S (mm): 14.3
• Series: 9000 PSI
