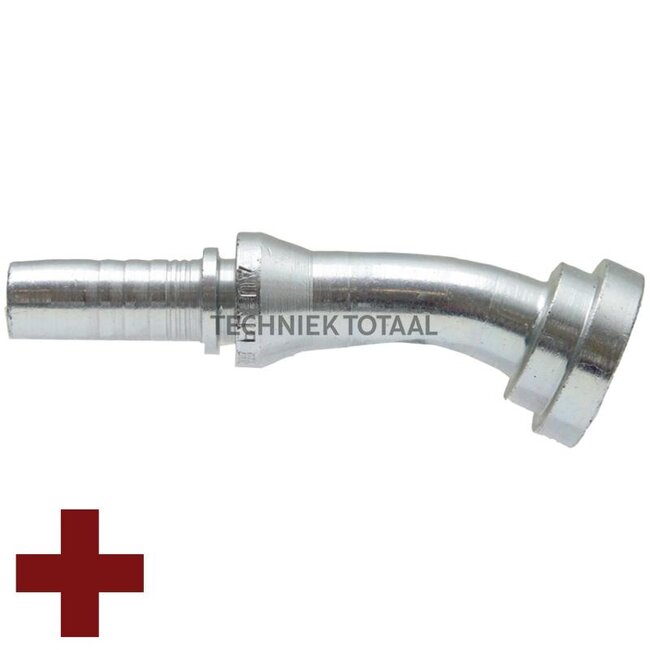

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/2", 22°, DN 32

Swage fitting SPIRALFIT

Replaces: M83921-20-24

Technical data:

• Type formula: SFS 22°
• E (mm): 21
• Series: 9000 PSI
• S (mm): 14.3
• Nominal width: DN 32 - 1 1/4"
• Description: SAE flange, heavy, 22°
• Comparison no.: M83921-20-24
• D (mm): 63.7
• D (inches): 1 1/2”
• Flange: 1 1/2”
• B (mm): 32
• A (mm): 119
