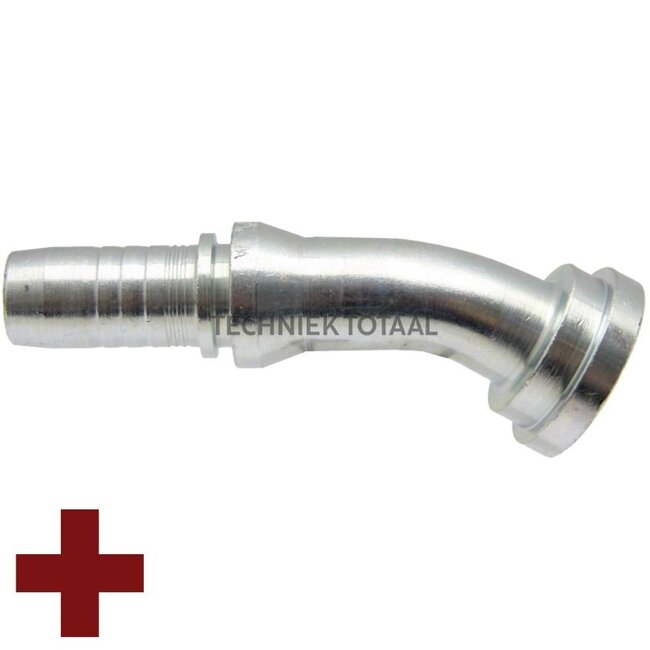

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/4", 30°, DN 25

Swage fitting SPIRALFIT

Replaces: M83931-16-20

Technical data:

• Flange: 1 1/4”
• B (mm): 26
• D (mm): 54
• E (mm): 26
• A (mm): 110
• Type formula: SFS 30°
• Comparison no.: M83931-16-20
• Nominal width: DN 25 - 1"
• Description: SAE flange, heavy, 30°
• Series: 9000 PSI
• D (inches): 1 1/4”
• S (mm): 14.3
