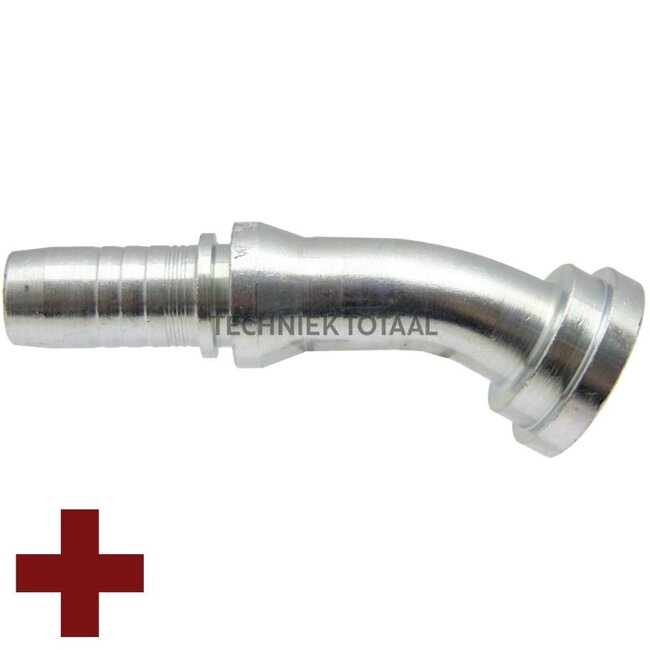

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/2", 45°, DN 38

Swage fitting SPIRALFIT

Replaces: M83941-24-24

Technical data:

• Nominal width: DN 38 - 1 1/2"
• D (inches): 1 1/2”
• Type formula: SFS 45°
• B (mm): 32
• Comparison no.: M83941-24-24
• Flange: 1 1/2”
• S (mm): 14.3
• Series: 9000 PSI
• Description: SAE flange, heavy, 45°
• E (mm): 45.5
• D (mm): 63.7
• A (mm): 111
