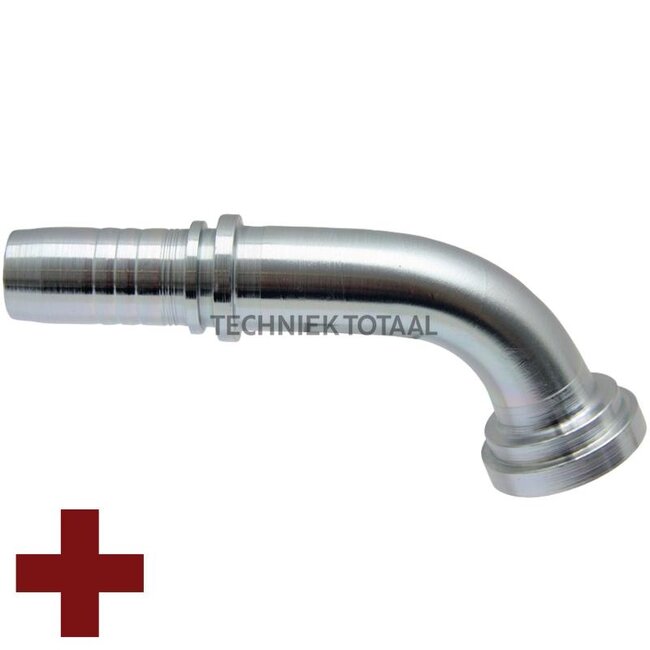

Manuli Swage fitting Spiralfit CAT SAE flange 1", 67.5°, DN 19

Swage fitting SPIRALFIT

Replaces: M83971-12-16

Technical data:

• Nominal width: DN 19 - 3/4"
• A (mm): 100.5
• Series: 9000 PSI
• Comparison no.: M83971-12-16
• D (mm): 47.7
• S (mm): 14.3
• D (inches): 1"
• Description: SAE flange, heavy, 67.5°
• Type formula: SFS 67.5°
• B (mm): 19.5
• Flange: 1"
• E (mm): 54
