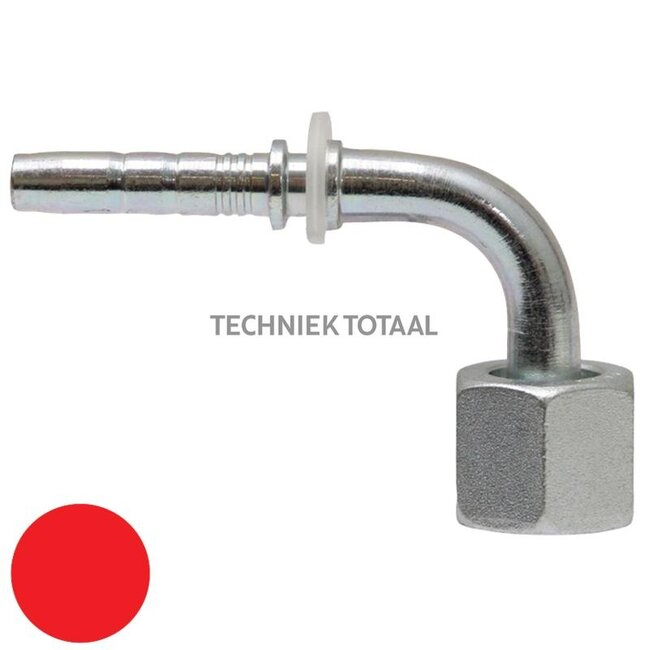

Manuli Swage fitting Spiralfit heavy cone with O-ring M30 x 2, 90°, DN 19

Swage fitting SPIRALFIT

Replaces: M81692-12-30

Technical data:

• T: M30 x 2
• Comparison no.: M81692-12-30
• Pipe (mm): 20
• E (mm): 68.5
• C (mm): 3.2
• Nominal width: DN 19 - 3/4"
• A (mm): 64.5
• B (mm): 12.5
• H2 (mm): 36
