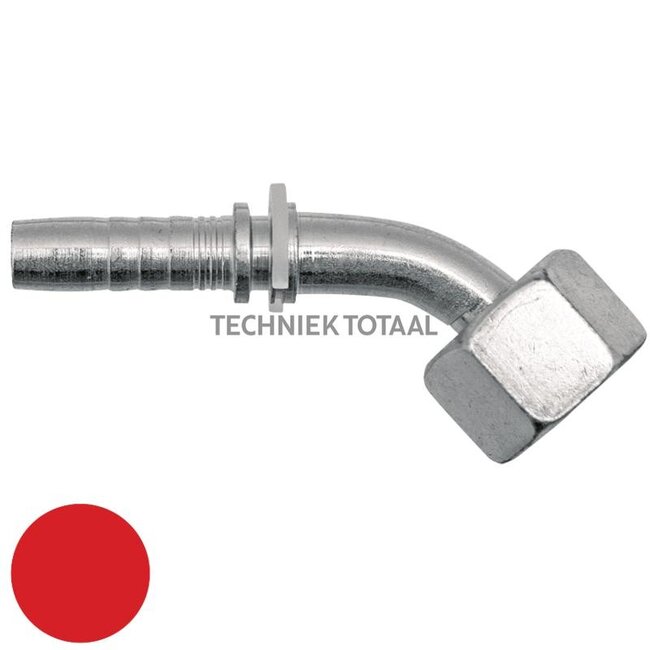

Manuli Swage fitting Spiralfit heavy cone with O-ring M36 x 2, 45°, DN 25

Swage fitting SPIRALFIT

Replaces: M81642-16-36

Technical data:

• A (mm): 103
• E (mm): 44.5
• Pipe (mm): 25
• Comparison no.: M81642-16-36
• Nominal width: DN 25 - 1"
• C (mm): 4.1
• T: M36 x 2
• B (mm): 15
• H2 (mm): 41
