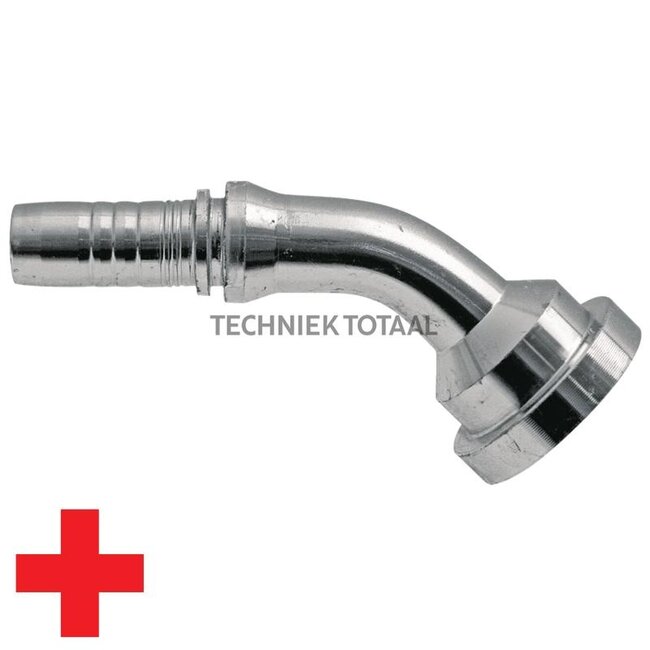

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/4", 45°, DN 25

Swage fitting SPIRALFIT

Replaces: M83641-16-20

Technical data:

• Description: SAE flange, heavy, 45°
• Comparison no.: M83641-16-20
• D (mm): 54.2
• Series: 6000 PSI
• Nominal width: DN 25 - 1"
• B (mm): 26
• E (mm): 37
• Flange: 1 1/4”
• D (inches): 1 1/4”
• A (mm): 97
• Type formula: SFS 45°
