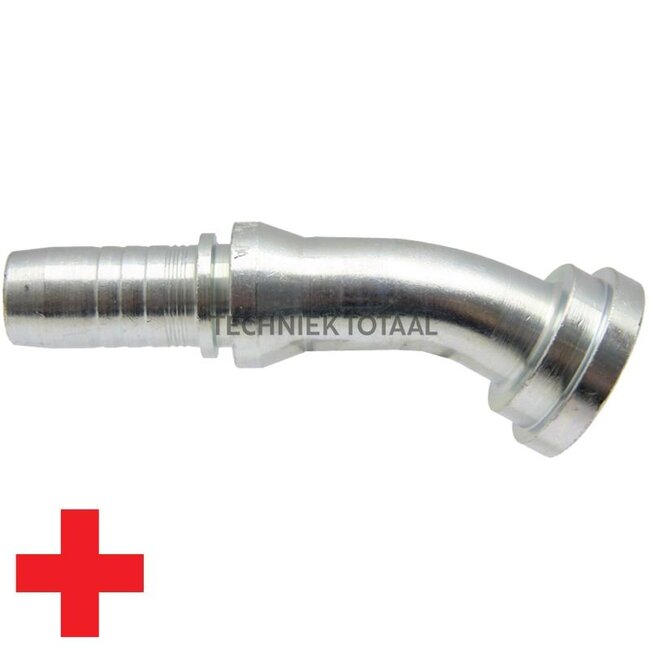

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/2", 30°, DN 38

Swage fitting SPIRALFIT

Replaces: M83631-24-24

Technical data:

• D (mm): 63.7
• Description: SAE flange, heavy, 30°
• Type formula: SFS 30°
• Nominal width: DN 38 - 1 1/2"
• B (mm): 32
• Series: 6000 PSI
• Comparison no.: M83631-24-24
• A (mm): 104.5
• Flange: 1 1/2”
• E (mm): 27
• D (inches): 1 1/2”
