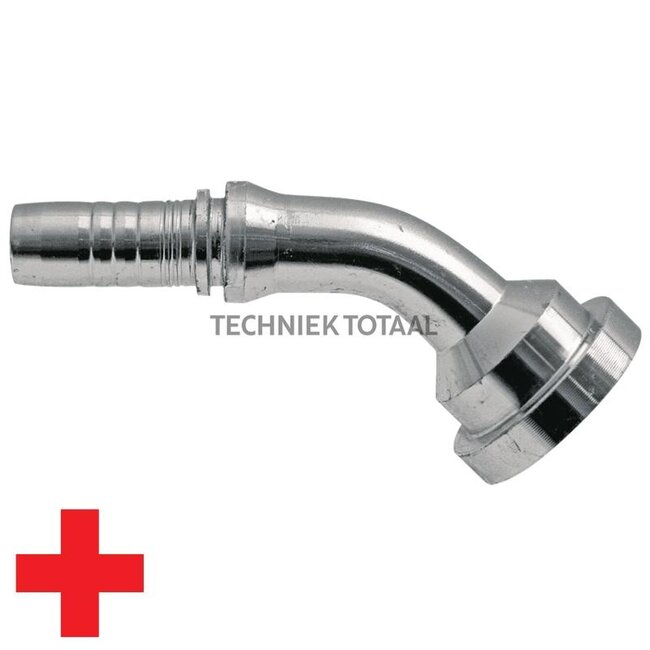

Manuli Swage fitting Spiralfit heavy SAE flange 1", 45°, DN 19

Swage fitting SPIRALFIT

Replaces: M83641-12-16

Technical data:

• A (mm): 85.5
• Series: 6000 PSI
• Nominal width: DN 19 - 3/4"
• Flange: 1"
• Comparison no.: M83641-12-16
• E (mm): 32.5
• Type formula: SFS 45°
• D (inches): 1"
• B (mm): 19.5
• D (mm): 47.7
• Description: SAE flange, heavy, 45°
