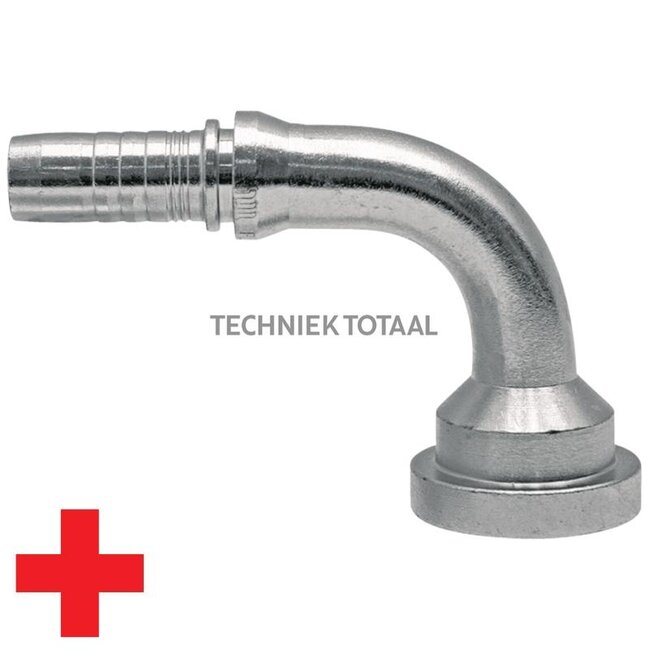

Manuli Swage fitting Spiralfit heavy SAE flange 1", 90°, DN 19

Swage fitting SPIRALFIT

Replaces: M83691-12-16

Technical data:

• D (inches): 1"
• A (mm): 72.6
• D (mm): 47.7
• B (mm): 19.5
• Flange: 1"
• Series: 6000 PSI
• E (mm): 65
• Nominal width: DN 19 - 3/4"
• Type formula: SFS 90°
• Comparison no.: M83691-12-16
• Description: SAE flange, heavy, 90°
