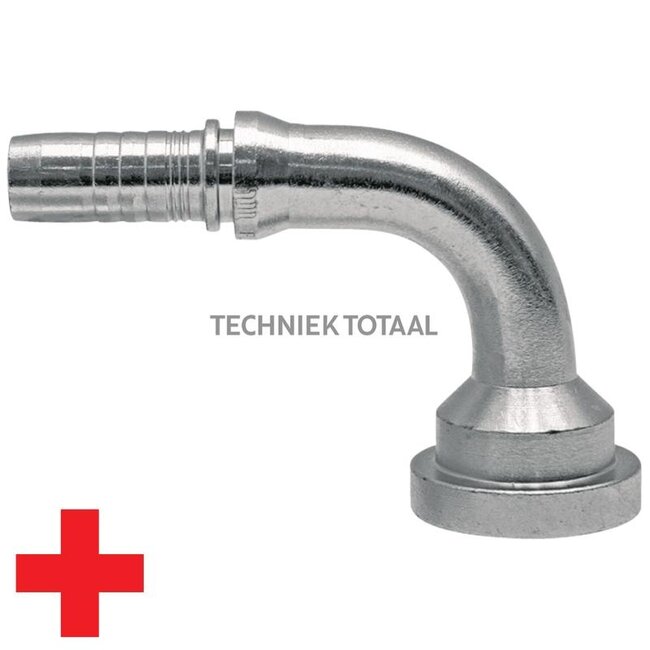

Manuli Swage fitting Spiralfit heavy SAE flange 1", 90°, DN 32

Swage fitting SPIRALFIT

Replaces: M83691-20-16

Technical data:

• Comparison no.: M83691-20-16
• Nominal width: DN 32 - 1 1/4"
• A (mm): 86
• Description: SAE flange, heavy, 90°
• Flange: 1"
• Series: 6000 PSI
• B (mm): 19.5
• Type formula: SFS 90°
• D (mm): 47.7
• E (mm): 68
• D (inches): 1"
