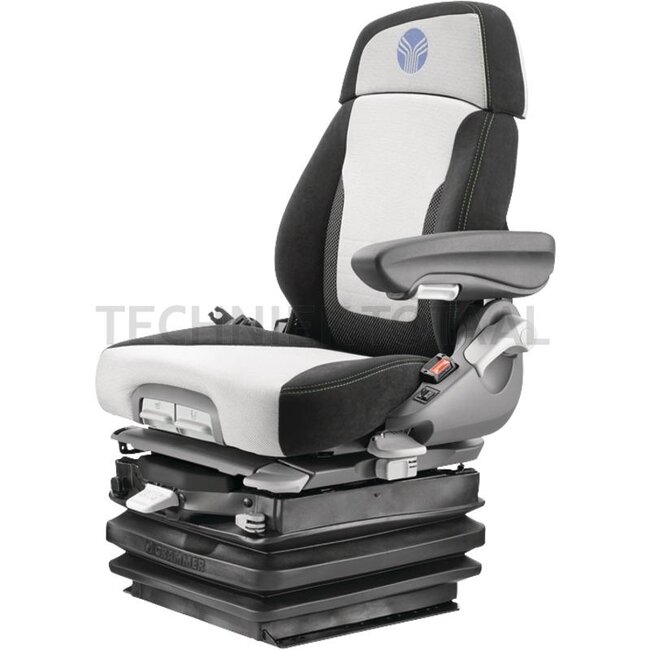

GRAMMER Maximo XT Dynamic Plus

MSG97AL/741

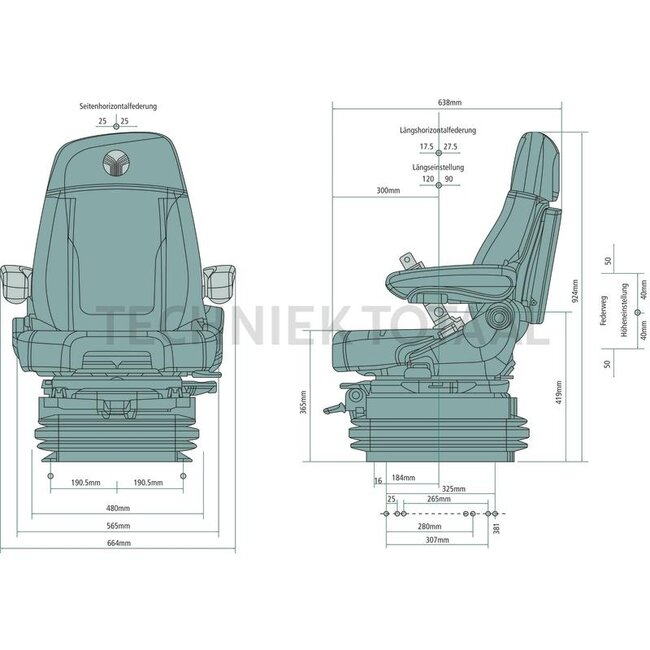

Technical data:

• To fit: Case, Steyr, New Holland
• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
• On-board voltage (V): 12
• Track gauge (mm): 381
• Restraint system: Yes
• Seat type: MSG97AL/741
• Seat contact switch: Optional
• • Dualmotion function (pivoting backrest extension) • Suspension travel 120 mm • Automatic weight adjustment • DDS: Dynamic Damping System • APS: automatic positioning system • Continuous height adjustment, 80 mm air-assisted • Fore/aft isolator • Side horizontal suspension • Swivel adaptor 7.5° left/15° right • Longitudinal adjustment 210 mm • Backrest tilt adjustment • Pneumatic lumbar support • Seat cushion depth and tilt adjustment • Passive climate control system • Seat heater 12V • Seat cushion width: 565 mm (extra high and wide) • Left armrest height and tilt adjustable • Storage pocket • Track gauge 381 mm • Cover: fabric, new design
• Suspension: Air suspension
• Joystick console: Yes
• Seat width (mm): 565
• Rotation: Yes
• Length (mm): 638
• Side horizontal suspension: Yes
• Height (mm): 881 → 961
• Upholstery type: Fabric / new design
• Fore/aft isolator: Yes
• Seat heater: Yes

Suitable for:

Case IH: Maxxum 135, Maxxum 145, Maxxum 150, Optum 250, Optum 270, Optum 300, Puma 150 Tier 4b (4/14-), Puma 165 (1/09-), Puma 165 Multicontroller (1/07-), Puma 165 Tier 4b (4/14-), Puma 170 (12/10-), Puma 175, Puma 180 (1/07-), Puma 180 (1/09-), Puma 185 (12/10-), Puma 185 Tier 4b (4/14-), Puma 195 (1/09-), Puma 200 Tier 4b (4/14-), Puma 210 (1/09-), Puma 220 Tier 4b (4/14-), Puma 240, Puma 150 CVX, Puma 165 CVX (11/08-), Puma 185 CVX (12/10-), Puma 200 CVX (12/10-), Puma 185 CVX Stage V, Puma 200 CVX Stage V, Puma 220 CVX Stage V, Puma 240 CVX Stage V, Vestrum 100 Activedrive Stage V (01/21-), Vestrum 100 CVX Stage V (6/19-), Vestrum 110 Activedrive Stage V (01/21-), Vestrum 110 CVX Stage V (6/19-), Vestrum 120 Activedrive Stage V (01/21-), Vestrum 120 CVX Stage V (6/19-), Vestrum 130 Activedrive Stage V (01/21-), Vestrum 130 CVX Stage V (6/19-)

New Holland: T5.110, T5.120, T5.110 Autocommand Stage V (5/19-), T5.120 Autocommand Stage V (6/19-), T5.130 Autocommand Stage V (6/19-), T5.140 Autocommand Stage V (6/19-), T5.110 Dynamic Command Stage V (4/20-), T5.120 Dynamic Command Stage V (4/20-), T5.130 Dynamic Command Stage V (4/20-), T5.140 Dynamic Command Stage V (4/20-), T6.145, T6.155 (2/12-), T6.165 (2/12-), T6.175 (2/12-), T6.180, T6.145 Autocommand Stage V (7/20-), T6.155 Autocommand Stage V (7/20-), T6.160 Autocommand Stage V (7/20-), T6.160 Autocommand Tier 4 (7/13-), T6.165 Autocommand Stage V (7/20-), T6.175 Autocommand Stage V (7/20-), T6.180 Autocommand Stage V (7/20-), T6.145 Dynamic Command Stage V (7/20-), T6.155 Dynamic Command Stage V (7/20-), T6.160 Dynamic Command Stage V (7/20-), T6.165 Dynamic Command Stage V (7/20-), T6.175 Dynamic Command Stage V (7/20-), T6.180 Dynamic Command Stage V (7/20-), T7.175 (4/14-), T7.175 Sidewinder II Stage V (1/20-), T7.190 (4/14-), T7.210 (4/14-), T7.230 (4/14-), T7.230 Stage V, T7.245 (4/14-), T7.245 Stage V, T7.260 (4/14-), T7.260 (12/10-), T7.260 Stage V, T7.275, T7.290, T7.315, T7.175 Autocommand (4/14-), T7.175 Autocommand Stage V (1/20-), T7.190 Autocommand (4/14-), T7.210 Autocommand (12/10-), T7.225 Autocommand (4/14-), T7.225 Autocommand Stage V (1/20-), T7.230 Autocommand (4/14-), T7.230 Autocommand Stage V, T7.245 Autocommand (4/14-), T7.245 Autocommand Stage V, T7.260 Autocommand (4/14-), T7.260 Autocommand (12/10-), T7.260 Autocommand Stage V, T7.270 Autocommand (12/10-), T7.270 Autocommand Stage V, T7.290 Autocommand Stage V, T7.315 Autocommand Stage V

Steyr: 6185 Absolut CVT Stage V, 6200 Absolut CVT Stage V, 6220 Absolut CVT Stage V, 6240 Absolut CVT Stage V, 6150 CVT (1/07-), 6165 CVT (11/08-), 6175 CVT (1/07-), 6185 CVT (12/10-), 6185 CVT Stage V (9/19-), 6200 CVT (11/08-), 6200 CVT Stage V (9/19-), 6220 CVT, 6220 CVT Stage V (9/19-), 6240 CVT, 6240 CVT Stage V (9/19-), 4100 Expert CVT Stage V (6/19-), 4110 Expert CVT Stage V (6/19-), 4120 Expert CVT Stage V (6/19-), 4130 Expert CVT Stage V (6/19-), 6150 Impuls CVT Stage V (1/20-), 6165 Impuls CVT Stage V (1/20-), 6175 Impuls CVT Stage V (1/20-), 4115 Profi Stage V (7/20-), 4125 Profi Stage V (7/20-), 4135 Profi Stage V (7/20-), 4145 Profi Stage V (7/20-), 6145 Profi Stage V (7/20-), 4115 Profi CVT Stage V (7/20-), 4115 Profi CVT Tier 4b (7/17-), 4125 Profi CVT Stage V (7/20-), 4125 Profi CVT Tier 4b (7/17-), 4135 Profi CVT Stage V (7/20-), 4135 Profi CVT Tier 4b (7/17-), 4145 Profi CVT Stage V (7/20-), 4145 Profi CVT Tier 4b (7/17-), 6145 Profi CVT Stage V (7/20-), 6250 Terrus, 6270 Terrus, 6300 Terrus
