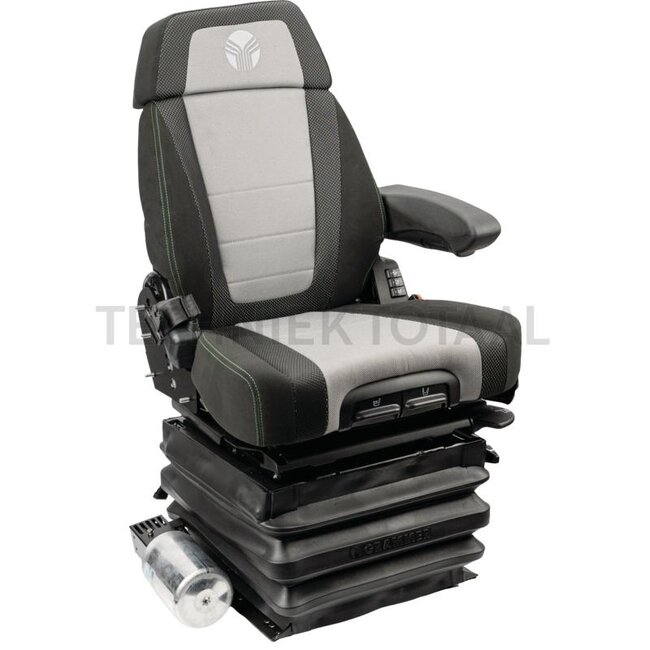

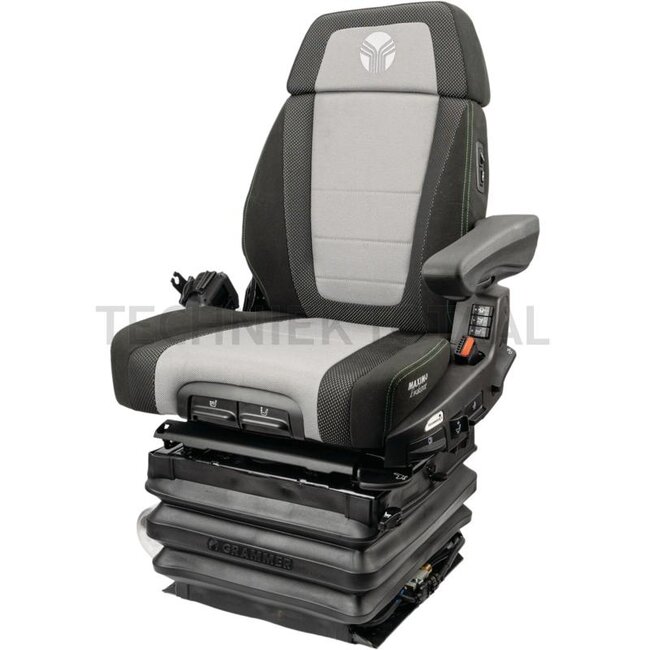

GRAMMER Maximo XT Evolution Active

MSG97EAC/741

Replaces: 1424507TMSI

Technical data:

• Seat contact switch: Yes

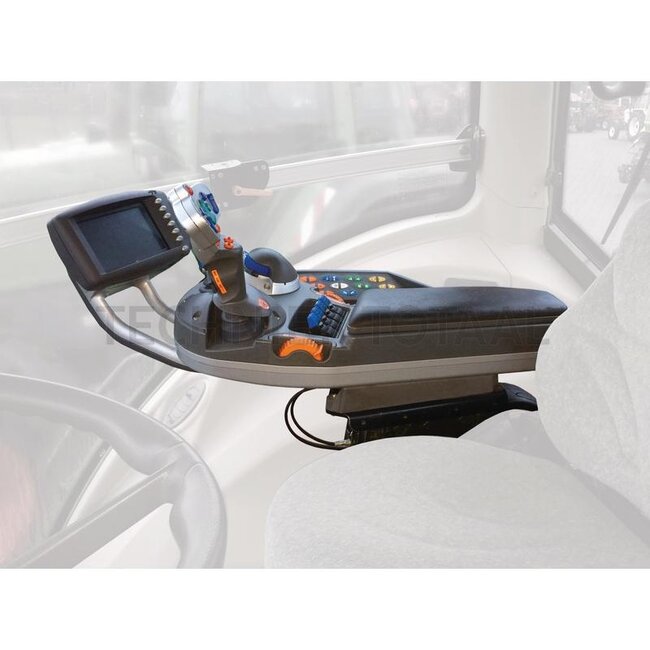

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).

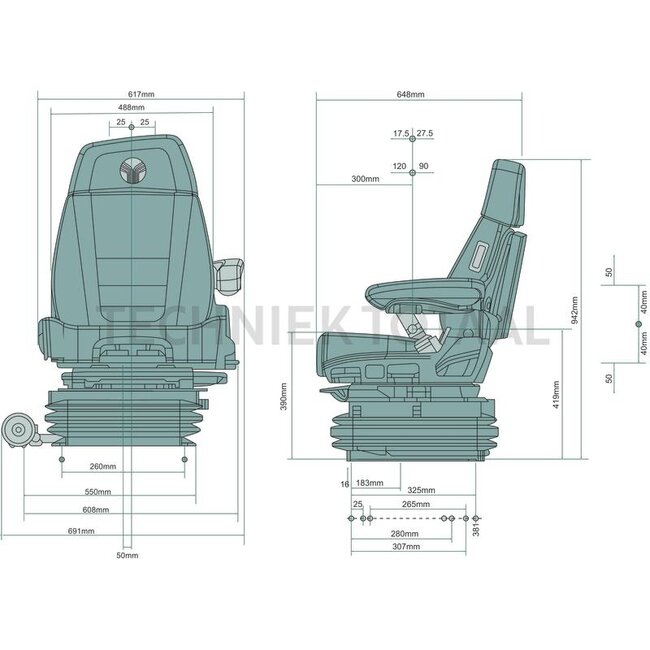

• Length (mm): 648
• Armrest: Yes
• Side horizontal suspension: Yes
• Restraint system: Yes
• Joystick console: Optional
• Rotation: Yes
• To fit: Fendt SCR and S4
• Height (mm): 942
• Version: The innovative suspension with electronic active control in the Maximo XT Evolution Active results in an average vibration reduction of 40%. Maximum accelerations are even reduced by up to 75%. The electronic weight adjustment adjusts the seat automatically to the driver’s weight. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. The Maximo XT Evolution Active features wider suspension for use in combination with heavy multifunction armrests (not included).
• • Air suspension with 12V compressor and electronic active control (EAC) • Low-frequency suspension, automatic damper • Suspension travel 120 mm • Electronic weight adjustment 50-130 kg • Storage pocket • APS (automatic positioning system) • Left armrest tilt adjustable 80 x 380 mm, automatic damper • Swivel adaptor adjustment range 15° • Height adjustment 80 mm, continuous (pneumatic) • Active climate control system • 2-stage seat heater • Longitudinal adjustment 210 mm • Lockable side horizontal suspension • Lockable fore/aft isolator • Pneumatic 2-way lumbar support • Backrest and tilt adjustment • Dualmotion back support • Seat cushion depth and tilt adjustment • Side contour adjustment, back cushion • Seat contact switch • Duo Sensitiv restraint system
• Fore/aft isolator: Yes
• On-board voltage (V): 12
• Lordosenstütze: Pneumatic, 2-way
• Suspension: Air suspension
• Seat type: MSG97EAC/741
• Seat width (mm): 550
• Track gauge (mm): 380
• Rückenverlängerung: Yes
• Seat heater: Yes
• Upholstery type: Fabric / new design
