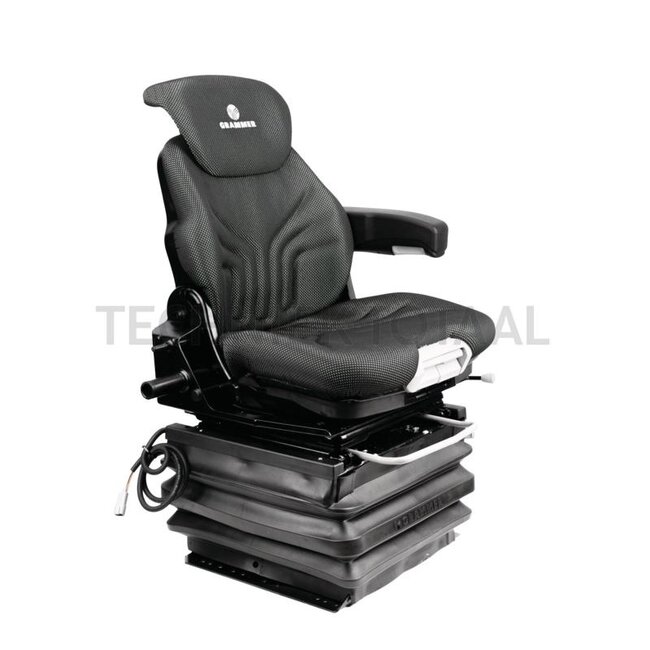

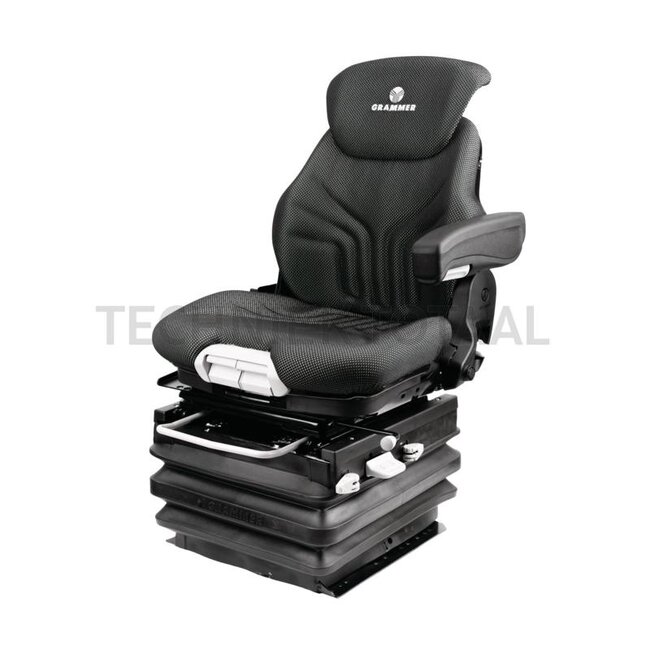

GRAMMER Maximo XT Professional
MSG97AL/731
Technical data:

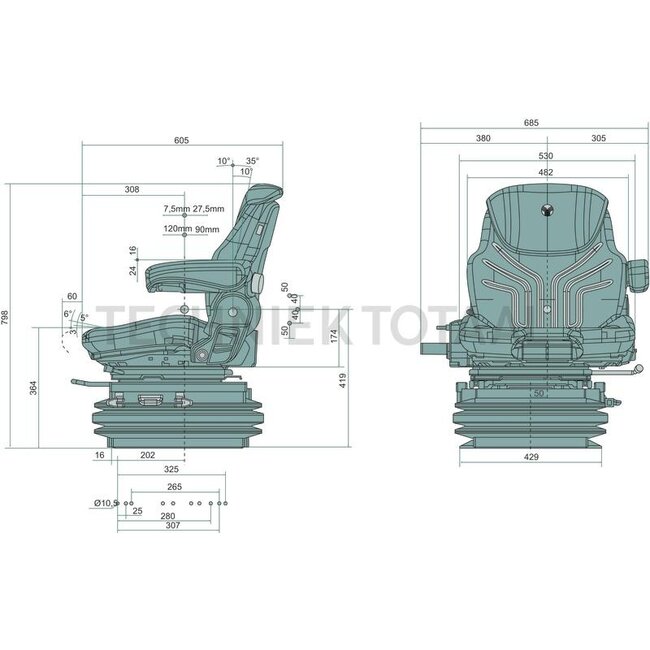

- Height (mm): 766
- Length (mm): 605
- Version: The Maximo Professional is a versatile driver's seat for professional applications that combines seating comfort and cost-effectiveness. The tried and tested low-frequency suspension absorbs vertical vibrations and shocks, preventing the seat from rocking in critical operating conditions. The automatic positioning system (APS), adjustable swivel adaptor or standard back extension ensure comprehensive comfort.
- Joystick console: Yes
- Seat width (mm): 530
- • Super comfort seat with low-frequency air suspension and 12V compressor • APS: automatic positioning system • Armrests, both sides with height and tilt adjustment • Adjustable damper • Swivel adaptor 10° left/20° right • Suspension travel 100 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (air-assisted) • Bracket, right for Fendt multifunction armrest • Longitudinal adjustment 210 mm • Fore/aft isolator • Mechanical lumbar support • Backrest and tilt adjustment • Retractable back extension • Seat heater • Seat cushion depth and tilt adjustment • Seat switch • Seat cushion width 530 mm
- Armrest: Yes
- On-board voltage (V): 12
- Upholstery type: Fabric
- Seat type: MSG97AL/731

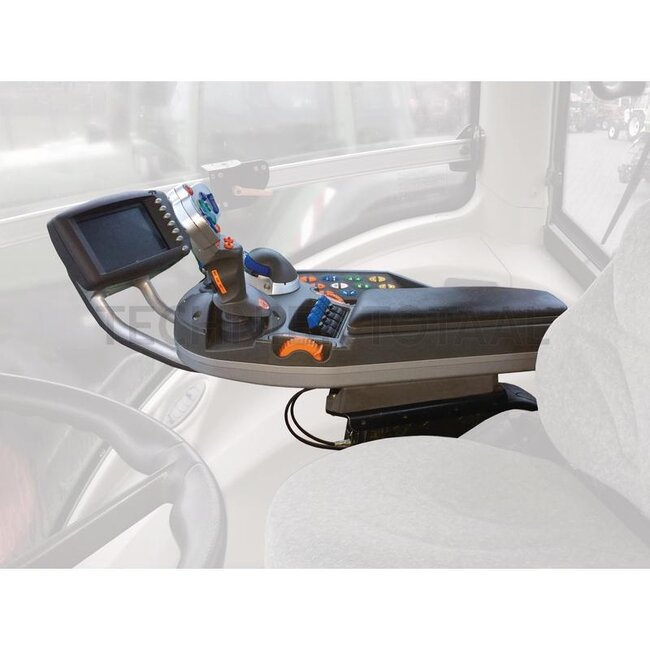

- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).
- To fit: Fendt SCR and S4, with side horizontal suspension
- Restraint system: Optional
- Seat heater: Yes
- Suspension: Air suspension
- Lordosenstütze: Mechanical
- Rotation: Yes
- Seat contact switch: Yes
- Side horizontal suspension: Yes
- Track gauge (mm): 380
- Rückenverlängerung: Yes
Suitable for:
Fendt: Favorit 816 (Typ 816), Favorit 818 (Typ 818), Favorit 822 (Typ 822), Favorit 824 (Typ 824), Favorit 916 (Typ 916), Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926), Fendt 815 (Typ 715), Fendt 818 (Typ 718), Fendt 818 (Typ 729), Fendt 820 (Typ 731), Fendt 822 (Typ 833), Fendt 822 (Typ 839), Fendt 824 (Typ 834), Fendt 824 (Typ 840), Fendt 826 (Typ 835), Fendt 826 (Typ 841), Fendt 828 (Typ 836), Fendt 828 (Typ 842), Fendt 916 (Typ 916), Fendt 918, Fendt 920 (Typ 920), Fendt 922 (Typ 919), Fendt 924 (Typ 922), Fendt 924 (Typ 924), Fendt 924 (Typ 941), Fendt 926 (Typ 926), Fendt 927 (Typ 925), Fendt 927 (Typ 942), Fendt 927 (Typ 950), Fendt 930 (Typ 928), Fendt 930 (Typ 930), Fendt 930 (Typ 943), Fendt 930 (Typ 951), Fendt 930 (Typ 957), Fendt 933 (Typ 931), Fendt 933 (Typ 944), Fendt 933 (Typ 952), Fendt 933 (Typ 958), Fendt 936 (Typ 934), Fendt 936 (Typ 945), Fendt 936 (Typ 953), Fendt 936 (Typ 959), Fendt 939 (Typ 946), Fendt 939 (Typ 954), Fendt 939 (Typ 960)
