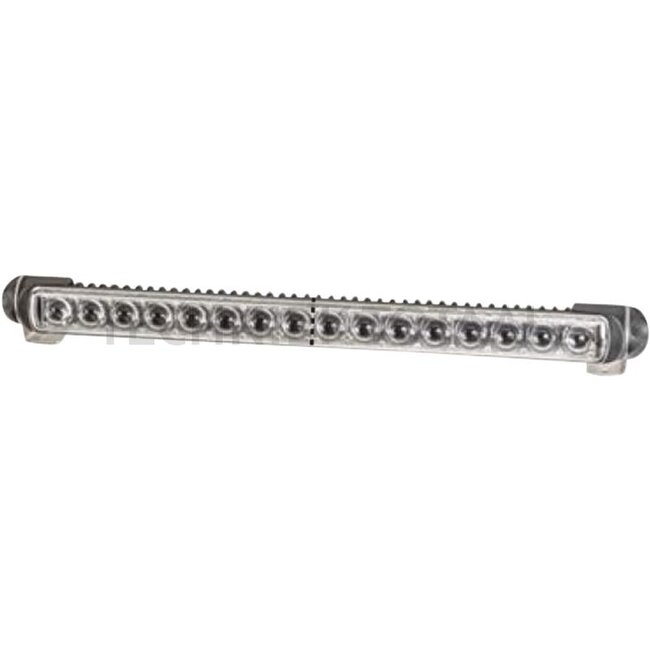

HELLA LED work light/light bar
Replaces: 1FJ 958 130-301
Technical data:
- Depth (mm): 67
- Theoretical luminous flux (lm): -
- Additional information: For off-road use, submersible (up to 1 m water depth for up to 30 minutes), drilling template included
- Effective luminous flux (lm): ≈ 1850
- Mounting size (mm): 57
- Type: LED
- Test mark: ECE R112-B; ECE 48
- Power consumption (W): 2 x 18
- Connection: Open cable ends
- Material: Housing: plastic
- Fixing: Hanging, vertical
- Width (mm): 528
- Light colour (K): 6000
- EMC: Radio interference suppression according to ECE R10
- Bulb: LED
- Current (A): 2x 1,5 (12 V) / 2x 0,75 (24 V)
- Operating temperature (°C): -40 / +60
- Number of pins: 3
- Form: Rectangular
- Nominal voltage (V): 12 / 24
- Voltage range (V): 9 - 33
- Mounting type: Vertical
- Protection class: IP6K7 / IP6K9K
- Light function: Far-reaching illumination
- Housing colour: Black
- Height (mm): 57
- Cable length (mm): 2500
- No. of LEDs: 16
- Dimensions W x H x D (mm): 528 x 44 x 67
- Bulbs included: Yes
