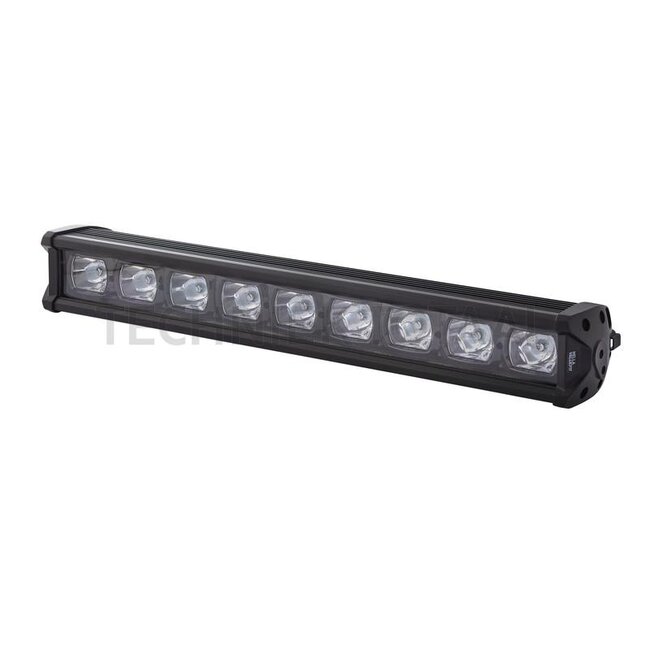

HELLA LED work light/light bar
Replaces: 1FJ 360 002-502
Technical data:
- Light function: Far-reaching illumination
- Cable length (mm): 2200
- Mounting type: Vertical/hanging, bracket mounting
- Test mark: CE; ECE R10; EMC; ECE R112-B
- Type: Light Bar LED
- Light aperture (mm): 492 x 55
- Form: Rectangular
- Colour: Transparent
- Operating temperature (°C): -40 / +50
- Housing colour: Black
- Additional information: • Continuously adjustable • With high beam
- Connection: DEUTSCH plug
- Dimensions W x H x D (mm): 539 x 86 x 80
- Nominal voltage (V): 12 / 24
- Material: Housing: aluminium, lens: plastic, bracket: stainless steel
- Number of pins: 2
- Eligible: Environmental protection and safety (formerly de minimis)
- Light colour (K): 6500
- No. of LEDs: 9
- Bulbs included: Yes
- Effective luminous flux (lm): ≈ 3500
- Bulb: LED
- Power consumption (W): 66
- Protection class: IP67
- Voltage range (V): 9 - 33
- Current (A): 5,5 (12 V) / 2,75 (24 V)
