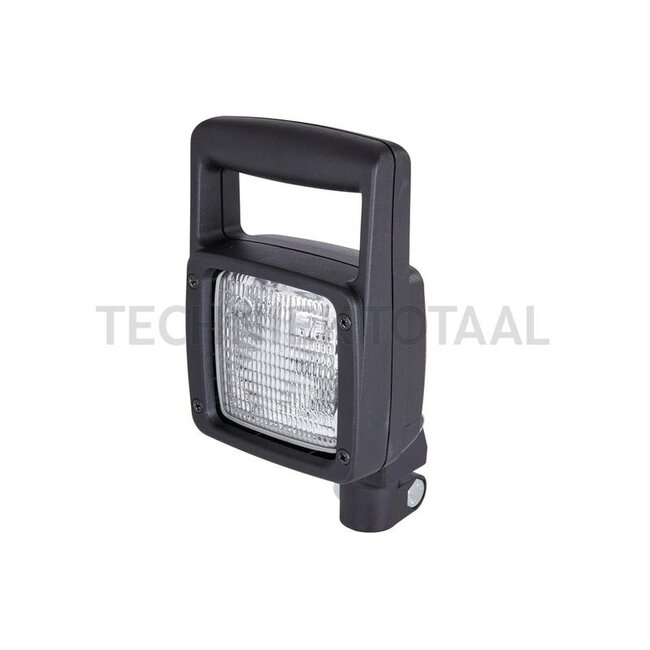

HELLA Work light
Replaces: 1GA 007 506-681
Suitable for:
Case IH: CS 78 (1/99-1/04), CS 80 (1/06-), CS 86 (1/99-1/04), CS 90 (1/06-), CS 94 (1/99-1/04), CS 94 (3/96-1/99), CS 100 (1/06-), CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 120 (4/00-7/03), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 150 (7/00-5/03), CVX 170, CVX 1135, CVX 1145, CVX 1155, CVX 1170, CVX 1190, CVX 1195
| Article number | 4551GA 007506681 |
|---|---|
| EAN | 9002920105569 |
| Weight | 670 g |
| Light function | Far-reaching illumination |
| Housing colour | Black |
| Form | Square |
| Test mark | ADR/GGVS tested |
| Bulbs included | Yes |
| Power consumption | 65 W |
| Nominal voltage | 24 V |
| Mounting type | Vertical, pipe socket |
| Material | Housing: plastic, lens: glass |
| Bending angle | 15 - 20 |

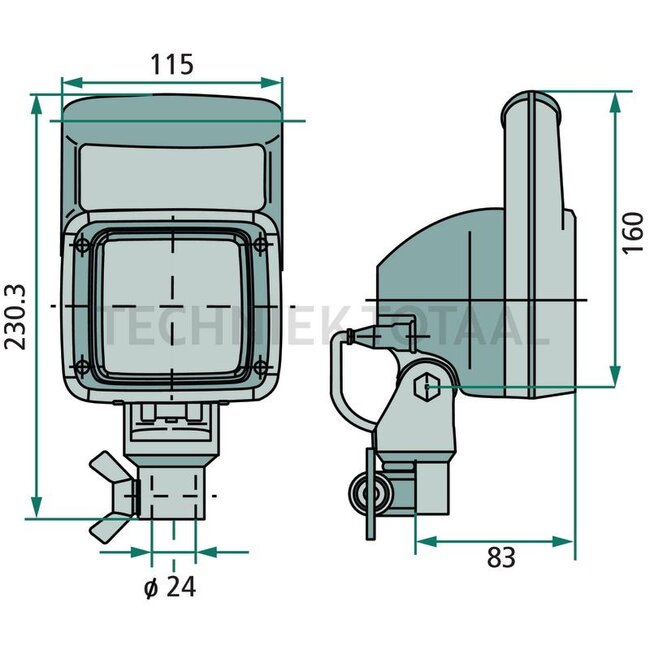

| Dimensions W x H x D | 115 x 230 x 94 mm |
| Additional information | • With handle • With rubber grommet • Without cable |
| Protection class | IP6K4K/IPX9K |
| Type | Ultra Beam H3 |
| Bulb | H3 |
| Light aperture (mm) | □ 83 |
