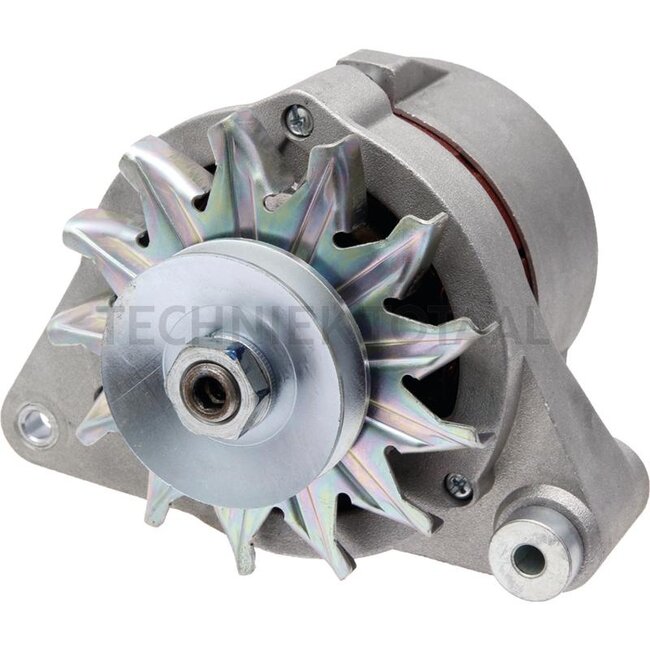

GRANIT Alternator 14 V / 35 A

Replaces: 11.201.096 / K1303, AGN1096E

Technical data:

• Additional information: with W connection

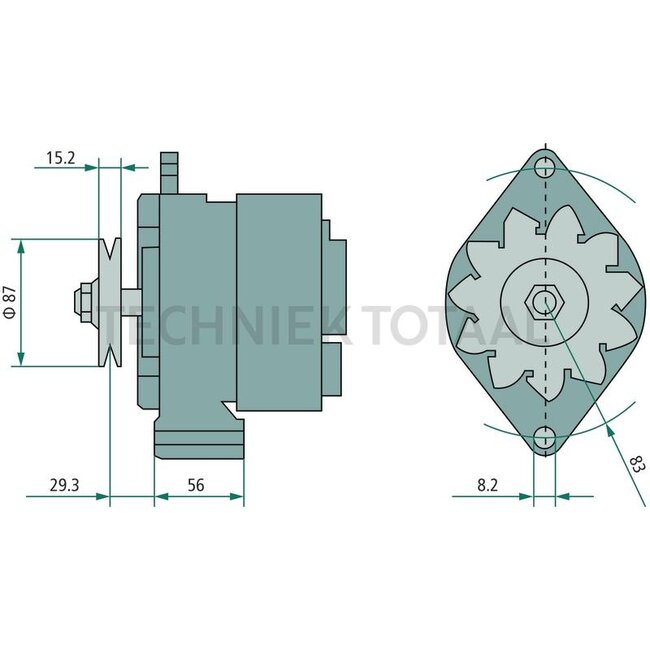

• Mounting L / d / R (mm): 56,0 / 8,3 / 86,0
• Installation angle (°): l 60
• Charging current (A): 35
• Form: B
• Mounting hole Ø / R (mm): 8,3 / 86,0
• Belt width (mm) / type: 12,7
• Direction of rotation: ↻
• Pulley spacing (mm): 23,5
• Pulley Ø (mm): 68,0

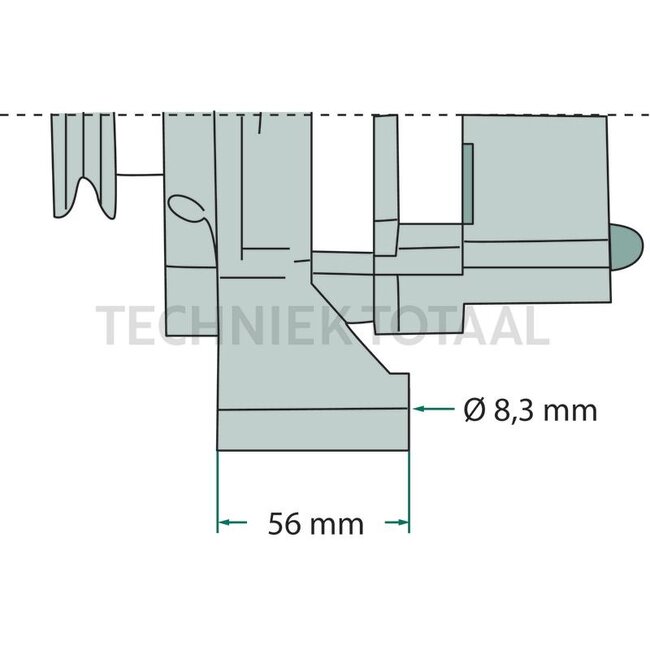

• Flange size (mm): 56,0
• Belt tension hole Ø / R (mm): 8,3 / 86,0
• Nominal voltage (V): 14
• Nominal values (V / A): 14 / 35

Suitable for:

Antonio Carraro: 352, 354, 452, 454, 455, 455 CS, 502, 504, 505, 505 CL, 552, 554, 555, 555 CL, 652, 654, 655, 655 CL, 702, 704, 9800

Case IH: Motor Case IH D-155, Motor Case IH D-179, Motor Case IH D-239, Motor Case IH D-246, Motor Case IH D-268, Motor Case IH D-310, 431, 640, 644, 743, 743 XL, 744, 745 S, 745 XL, 844, 844 S, 844 XL, 845, 845 XL, 856 XL, 946, 955, 955 XL, 956, 956 XL, 1046, 1055, 1055 XL, 1056, 1056 XL, C 55, C 64, CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (3/96-1/99), CS 86 (3/96-1/99), CS 94 (3/96-1/99), 1246, 1255, 1255 XL, 1455, 1455 XL

Deutz-Fahr: D 2505, D 3005, D 4005, D 4505, D 5005, D 5505, D 6005, D 8005, D 9005, D 2506, D 3006, D 4006, D 4506, D 5006, D 5206, D 5506, D 6006, D 6206, D 6806, D 7006, D 7206, D 7506, D 8006, D 9006, D 10006, D 2807, D 3607, D 4007, D 4507, D 4807, D 5207, D 6007, D 6207, D 6507, D 6807, D 6907, D 7007, D 7207, D 4507C, D 4807C, D 5207C, D 6007C, D 6207C, D 6507C, D 6807C, D 6907C, D 7007C, D 7207C, D 7807C, D 25, D 30, D 40, D 50, D 80, DX 80, DX 85, DX 86, DX 90, DX 92, DX 110, DX 120, DX 4.10, DX 4.30, DX 4.50, DX 4.70, DX 6.10, DX 6.30, Intrac 2002, Intrac 2003, Intrac 2004, M 600, M 660, M 750, M 770, M 900, M 922, M 980, M 1002, M 1102

Fendt: Farmer 1, Farmer 2, Farmer 3, Farmer 4, GT 231

Goldoni: 1055, 3050, Star 3070

Holder: A 30, A 40, A 45, A 50, A 55, A 60, B 40, B 41, B 50, B 51, P 60

Itma: 3.40, 500, 600, Sirio 4RM

John Deere: 920, 1020, 1120, 2020, 2120, 3120, 930, 1030, 1130, 1630, 1830, 2030, 2130, 3030, 3130, 1035 (nur für Spanien), 1635 (nur für Spanien), 2035 (nur für Spanien), 2135 (nur für Spanien), 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3340 (nur für Spanien), 3640, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 925, 932, 935, 942, 945, 952, 955, 965, 975, 6100, 6200, 6300, 6400

Kramer: Motor Deutz FL912

Renault: 32-50, 32-60, 34-60, 50, 51, 53, 56, 58-14, 61-12, 61-14, 70, 80, 82, 86, 301, 321, 351, 361, 421, 456, 461, 462, 466, 480, 481-4, 486, 571-4, 1451-4

Schlüter: Super 1050, Super 1150, Super 1250, Super 1300, Super 1500, Super 1600, Super 1800, Super 2000

Still: Diverse
