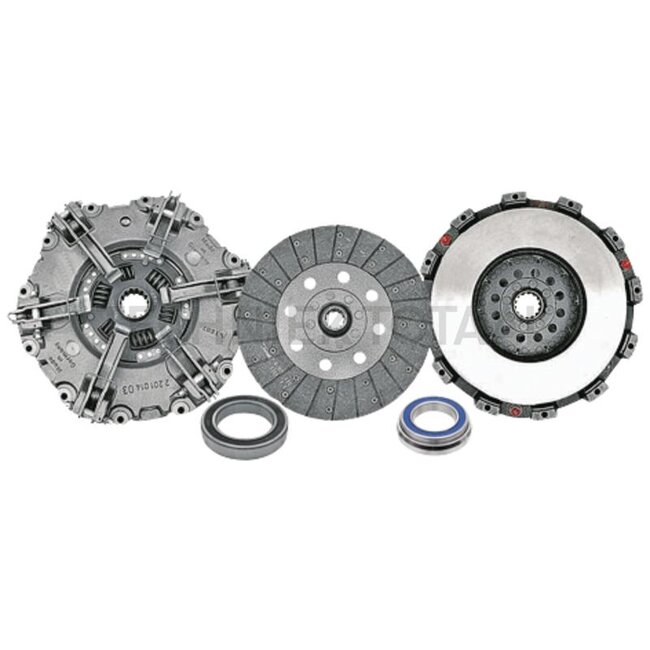

GRANIT clutch kit with a flywheel size 2 mm raised and a diameter of 280 mm. It consists of a double clutch, clutch plate and 2x release bearing. The clutch is a 6-arm clutch DUT 280CERAM sintered, independently engaged, dimensions 35 x 40, with 14 grooves. The disc is organic, dimensions 22 x 25, with 10 grooves and diameter 280. The bearings have dimensions 50 x 80/89 x 22 (driving clutch) and 70 x 110 x 20 (PTO shaft loose). Fits tractors of Fiat.
55-46, 60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 55-66, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S, 566, 666, 766, 670, 580, 680, 780, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 72-93, 82-93, 60-94, 72-94, 82-94, 740, 500, 540, 550, 600, 640, 80-65
| Article number | 44507800 |
|---|---|
| Weight | 28,36 kg |
| Contents | Double clutch, clutch plate and 2x release bearing |
| Version | Clutch info: 6-arm clutch DuT 280CERAM sintered (independent engagement) Dimensions: 35 x 40, 14 grooves Disc info: organic Dimensions: 22 x 25, 10 grooves Diameter: 280 Bearing info: Dimensions: 50 x 80/89 x 22 (driving clutch) Dimensions: 70 x 110 x 20 (PTO shaft loose) |
