GRANIT End control unit single-acting 210 bar, M18 x 1,5 Deutz D 2506 - D 4006 | 2333728
GRANIT 9,3675 reviews
(0)
-15%
GRANIT End control unit single-acting 210 bar, M18 x 1,5 Deutz D 2506 - D 4006 | 2333728

GRANIT End control unit single-acting 210 bar, M18 x 1,5 Deutz D 2506 - D 4006 | 2333728

€553,67
€470,62 Incl. 21% VAT
€388,94 Excl. VAT
In stock

Technical data: Max. operating pressure: 210 bar, Nominal flow rate: max. 25 l/min., Tightening torque: 30 Nm, Connections: M18 x 1.5. Description: This control valve has been specially developed for Deutz tractors with SD60 hydraulics. As the hole patter Read more.

Larger quantity required?



Product description

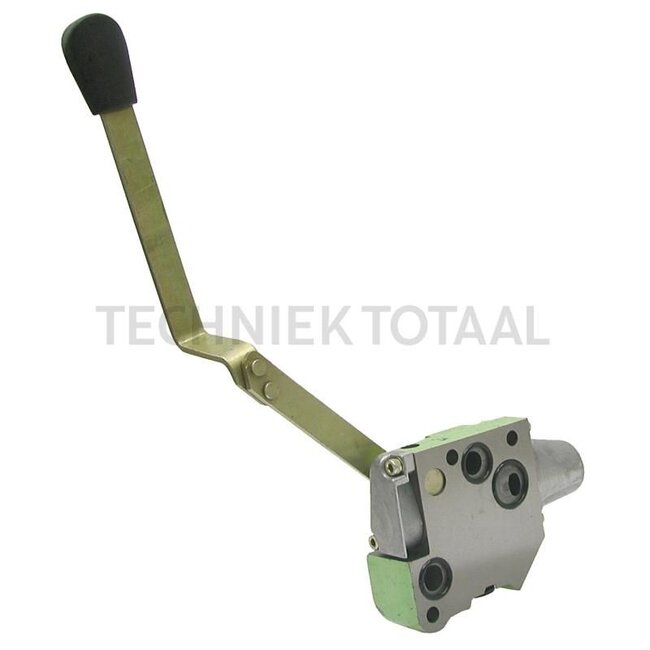

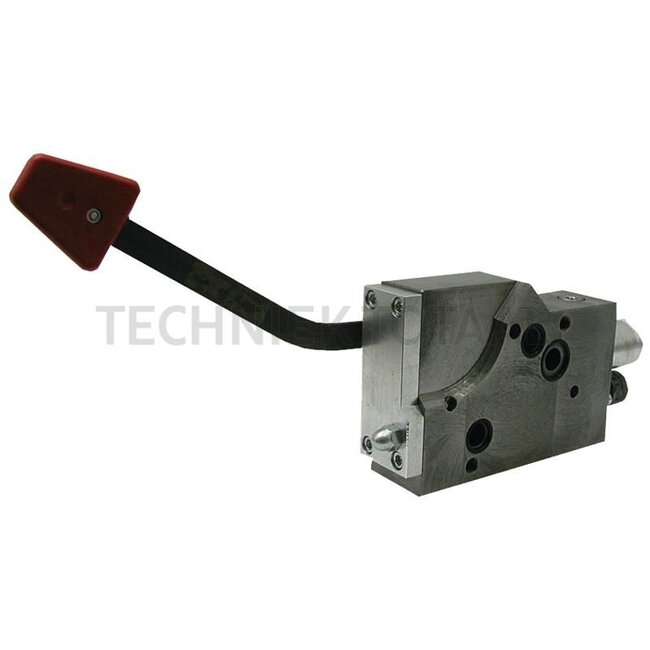

End control unit sa, 1x detent (with lever)

  • Technical data: Max. operating pressure: 210 bar
    Nominal flow rate: max. 25 l/min.
    Tightening torque: 30 Nm
    Connections: M18 x 1.5
  • Description: This control valve has been specially developed for Deutz tractors with SD60 hydraulics. As the hole pattern is identical to Deutz, this valve can also be mixed with Deutz SD-60 valves. The control valve is a single-acting valve. It is a gate-sealed control valve with neutral fine control that allows very low fit leakage, even at the highest pressure.

  • Passend voor:

  • Deutz-Fahr: 02333728, Serie 06, D 2506, D 3006, D 4006, D 4506, D 5006, D 5206, D 5506, D 6006, D 6206, D 6806, D 7006, D 7206, D 7506, D 8006, D 9006, D 10006, D 13006, Serie 07, D 2807, D 3607, D 4007, D 4507, D 4807, D 5207, D 6007, D 6207, D 6507, D 6807, D 6907, D 7007, D 7207, D 7807, Serie DX 3 VC, DX 3.10 VC, DX 3.30 VC, DX 3.50 VC, DX 3.60 VC, DX 3.65 VC, DX 3.70 VC, DX 3.75 VC, DX 3.90 VC
  • Further information

    Article number
    85285000
    EAN Code
    4059139216307
    SKU
    85285000
