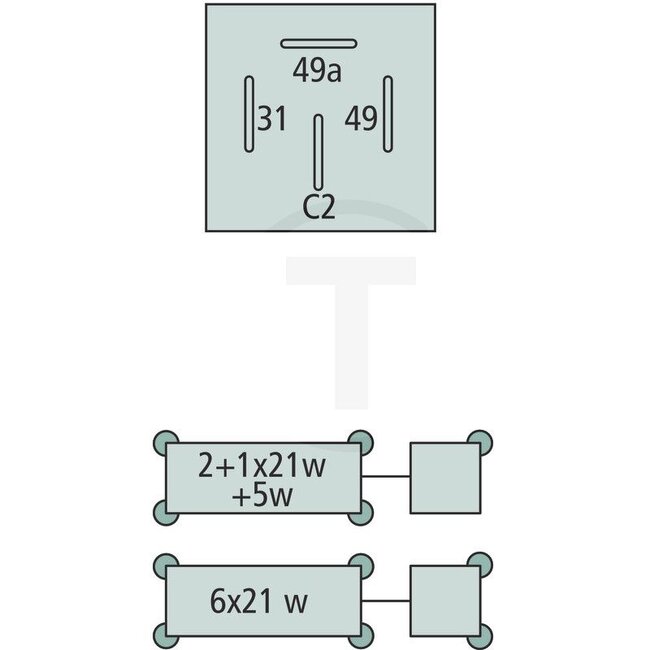

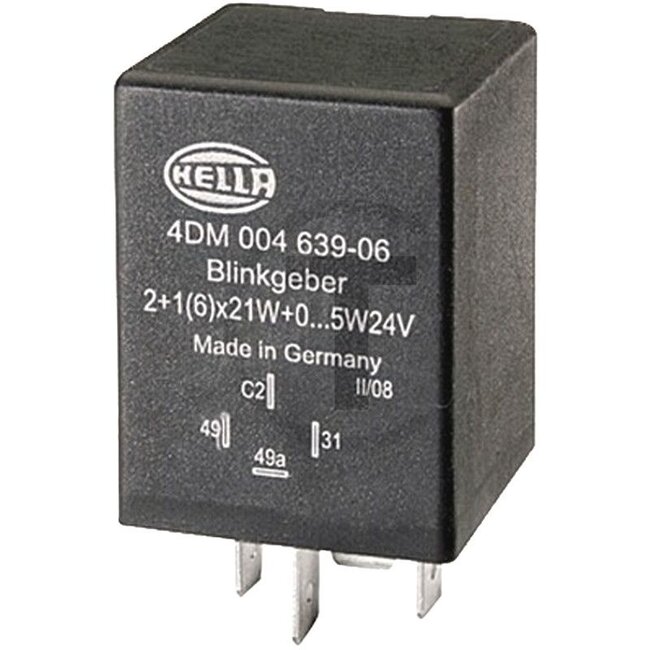

Flasher unit with a voltage of 24 V, rated 2 + 1 x 21 W + 5 W (6 x 21 W) and designed for trailers. The unit has 4 connections and is electronic. Inductive load: 5 A; capacitive load: 5 A. Load capacity at 24 V: 30 A. Fits tractors from Linde.
Reference numbers:4DM 004 639-061, 0009732519
Diverse, H8.00XM, H9.00XM, H10.00XM, H12.00XM (H007), H13XM-6, H14XM-6, H16XM-6, H10XM-12EC, H12XM-12EC (H019)
Diverse
Diverse
Diverse, E, E12-02 (324-02) 06/1999 - 12/2007, E15-02 (324-02) 06/1999 - 12/2007, E16-02 (324-02) 06/1999 - 12/2007
Diverse
| Article number | 4554DM 004639061 |
|---|---|
| EAN | 4082300264906 |
| Weight | 48 g |
| Version | 24 V / 2 + 1 x 21 W + 5 W (6 x 21 W) for trailer |
| Inductive load | 5 A/capacitive load: 5 A |
| Load capacity at 24 V | 30 A |
