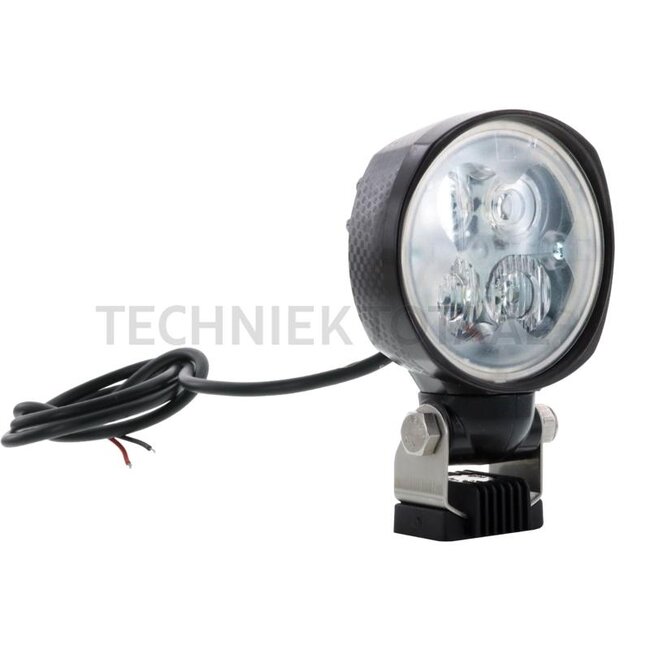

Floodlight with LED bulb by Vignal, model Carbonlux RC 850, with a power of 12 watts and an effective luminous flux of 850 lm. The unit operates in a voltage range of 10 to 30 V, and the light colour is 6,500 K. The light is round, measures 86 x 49 mm with a mounting size of 128 mm, and is made of polycarbonate. It serves spot and flood lighting, has protection class IP69K and is fixed via a socket, with open cable ends. The bulb is included, the test mark is ECE R10, and the operating temperature ranges from -30°C to +50°C.
| Article number | 19409203 |
|---|---|
| Weight | 360 g |
| EMC | CISPR 25 Class 3 |
| Theoretical luminous flux | 1.500 lm |
| Form | round |

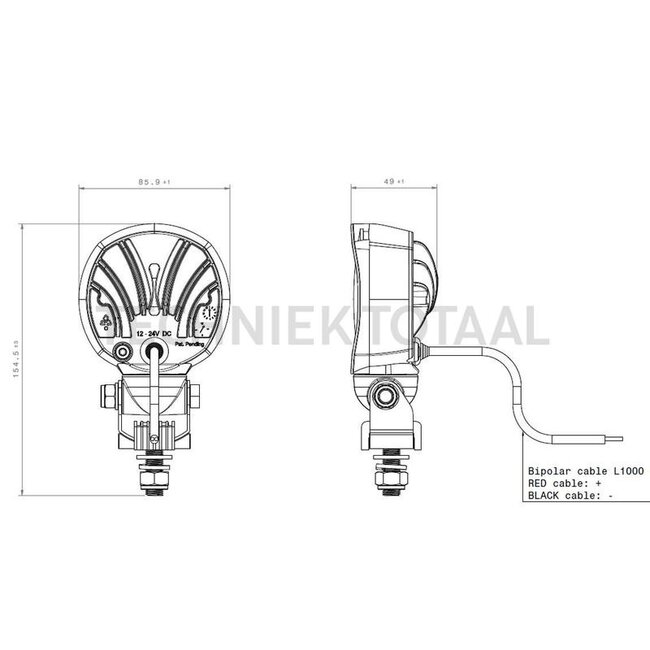

| Dimensions W x H x D | 86 x 49 mm |
| Effective luminous flux | 850 lm |
| Operating temperature | -30°C / +50°C |
| Power | 12 watts |
| Additional information | Geschützt gegen Verpolungen Schwingungsfestigkeit ISO16750-3 Lebensdauer: > 20.000 Stunden |
| Mounting size | 128 mm |
| Protection class | IP69K |
| Voltage range | 10 - 30 V |
| Material | Polycarbonate |
| Bulbs included | yes |
| Test mark | ECE R10 |
| Connection | open cable ends |
| Bulb | LED |
| Fixing | Socket |
| Light colour | 6.500 K |
| Light function | Spotlight, Floodlight |
