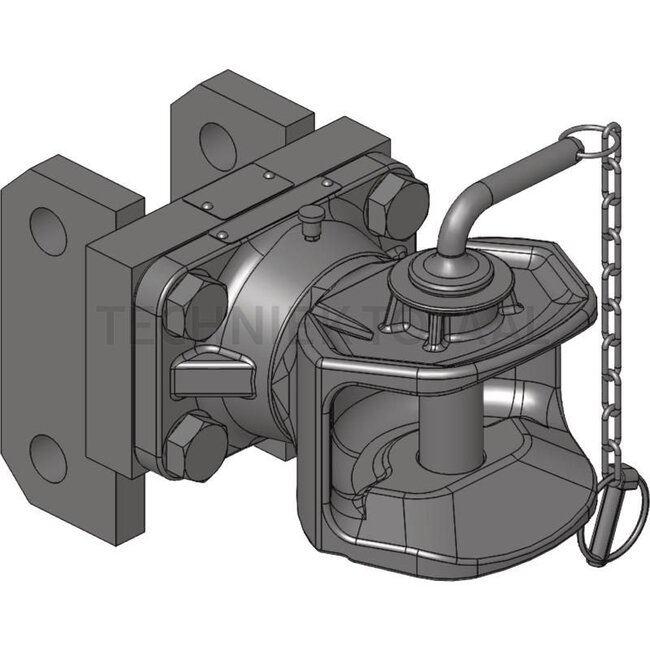

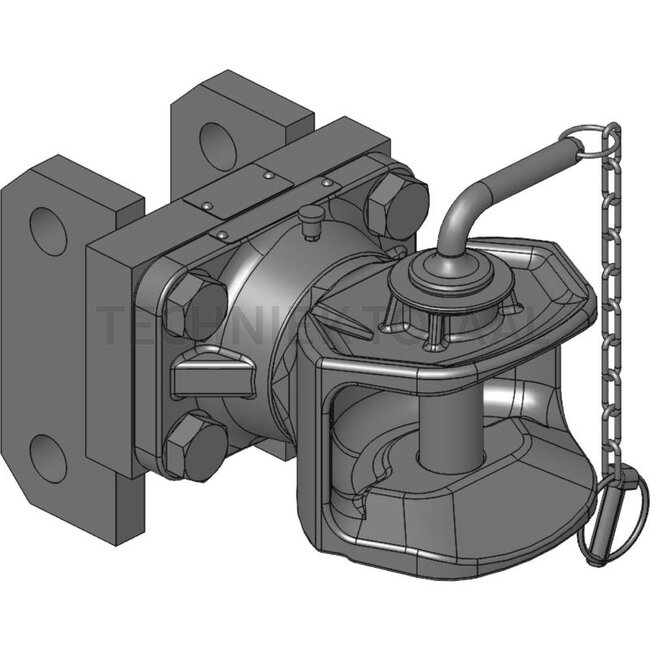

Name: Scharmüller Clutch hitches can be disconnected with bracket, 82,4 kN, working length 211 mm - 04301427, 5.5145.011-A02, 05.5145.011-A02
Brand: Scharmüller
SKU: 777055145011
Price: 804.73 EUR

Scharmüller Clutch hitches can be disconnected with bracket, 82,4 kN, working length 211 mm - 04301427, 5.5145.011-A02, 05.5145.011-A02

Hitch

suitable for: Deutz-Fahr

Series: DX AgroPrima

Category: Hitches

Version: Can be disconnected with bracket

Colour: Black

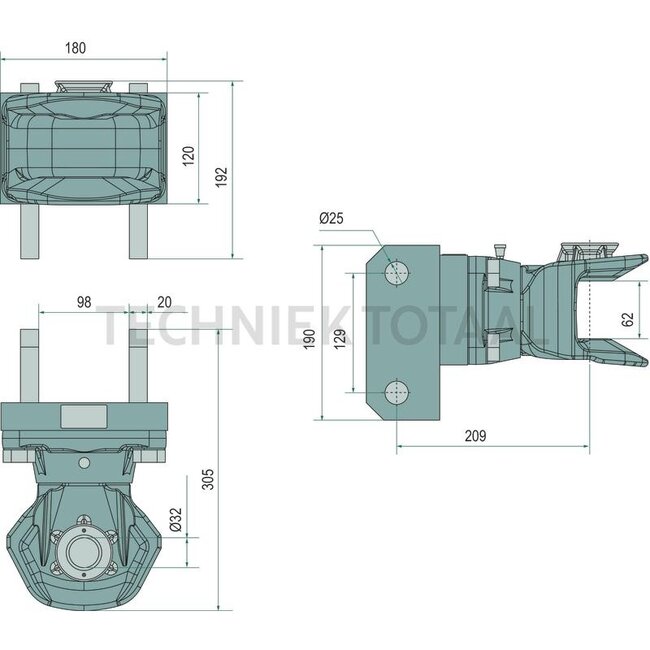

Overhang (mm): 211

Hole (mm): M20

D-value (kN): 82,4

Thread: M20

Internal width (mm): 98

Hole spacing (mm): 129

Load capacity (t): 2

Load capacity (kg): 2000

Drawbar eye: DIN 11026, 74054 = 40 mm
DIN 74053 = 50 mm

Connecting pin (mm): 31

Locking pin Ø (mm): 25

Lock: manual

Passend voor:

Deutz-Fahr: 5.5145.011-A02, 05.5145.011-A02, 04301427, Serie 07, D 2807, D 3607, D 4007, D 4507, D 4807, D 5207, D 6007, D 6207, D 6507, D 6807, D 6907, D 7007, D 7207, D 7807, Serie 07C, D 4507C, D 4807C, D 5207C, D 6007C, D 6207C, D 6507C, D 6807C, D 6907C, D 7007C, D 7207C, D 7807C, Serie AgroCompact 3.xx, AgroCompact 3.30 V/F, AgroCompact 3.50 S, AgroCompact 3.50 V/F, AgroCompact 3.70 V/F, AgroCompact 3.90 F, AgroCompact 3.90 S, Serie AgroXtra, AgroXtra 3.57, AgroXtra 4.07, AgroXtra 4.17, Serie DX 3, DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.80, DX 3.90, Serie DX 3 SC, DX 3.10 SC, DX 3.30 SC, DX 3.50 SC, DX 3.60 SC, DX 3.65 SC, DX 3.70 SC, DX 3.80 SC, DX 3.90 SC, Serie DX 3 V/F/S, DX 3.10 V, DX 3.50 S, DX 3.50 V/F, DX 3.70 V/F, DX 3.90 F, DX 3.90 S, Serie DX 3 VC, DX 3.10 VC, DX 3.30 VC, DX 3.50 VC, DX 3.60 VC, DX 3.65 VC, DX 3.70 VC, DX 3.75 VC, DX 3.90 VC, Serie Hopfen, Hopfen DX 4.17
