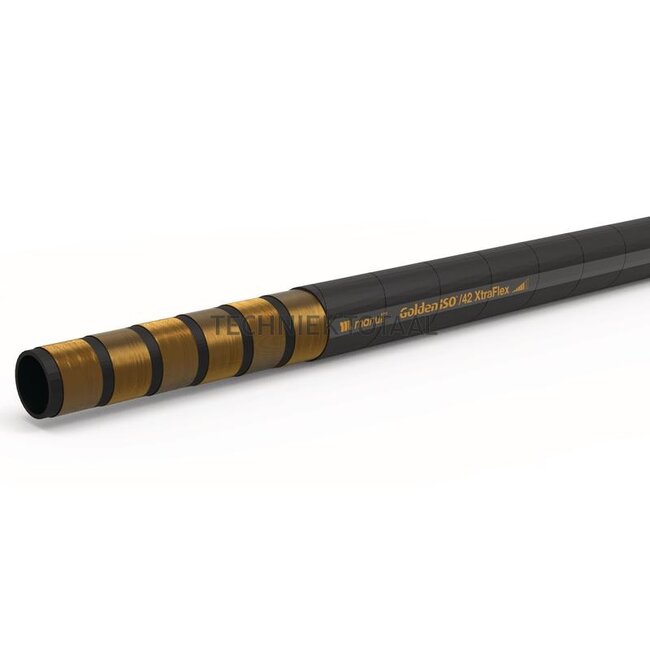

Manuli Hydraulic hose R15 Goldeniso/42 Xtraflex DN 12 (1/2"), 420 bar

MANULI hydraulic hose

Replaces: H10097012MBC9

Technical data:

• Comparison no.: H10097012MBC9
• Burst pressure (bar): 1680
• Nominal width: DN 12 - 1/2"
• Bending radius (mm): 120
• Press fitting (non-skive): 11383975
• Weight (g/m): 807
• Outer Ø (mm): 22.7
• Version: 4 steel wire spiral inserts
• Hose type: GOLDENISO
• Description: R15
• Press fitting (skive): 815M00910-08
• Type testing: CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED);DNV-GL; MA
• Operating pressure max. (bar): 420
