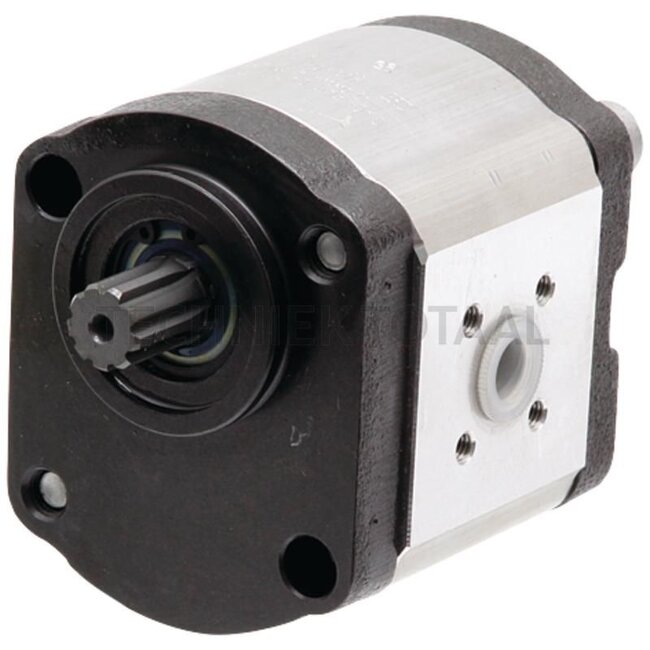

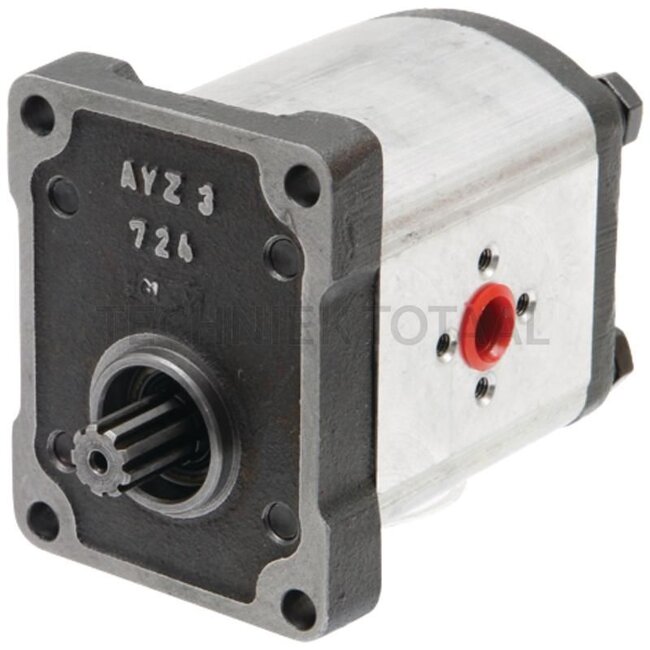

Bosch/Rexroth Hydraulic pump clockwise 14 cm³/rpm., spline-as B 17 x 14 Same | R918C00615
€507,72
€482,30 Incl. 21% VAT
€398,60 Excl. VAT
Delivery time on request
Output volume: 14 cc/rev. Drive shaft: Splined shaft 17 x 14 9 splines. Operating pressure max.: 250 bar. Direction of rotation: Right. Min. speed: 500 1/min.. Max. speed: 3000 1/min.. Line connection suction side: Ø 40 mm, 4-hole, M6. Line connection pre Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description
Hydraulic pump Clockwise
Output volume (cc/rev): 14
Drive shaft: Splined shaft 17 x 14 9 splines
Operating pressure max. (bar): 250
Direction of rotation: Right
Min. speed (1/min.): 500
Max. speed (1/min.): 3000
Line connection suction side: Ø 40 mm, 4-hole, M6
Line connection pressure side: Ø 35 mm, 4-hole, M6
Bosch no.: 0510515010
Capacity Q (cc/rev): 14
Adaptor plate hole pattern (mm): 60 x 60 (2 x)
Fitting Ø (mm): 50
Seal material: NBR
Passend voor:
Same: R918C00615, Serie Explorer, Explorer 55, Explorer 60, Explorer 65, Explorer 70, Explorer 75, Explorer 75 (New), Explorer 75 Classic, Explorer 75 Special, Explorer 80, Explorer 90
