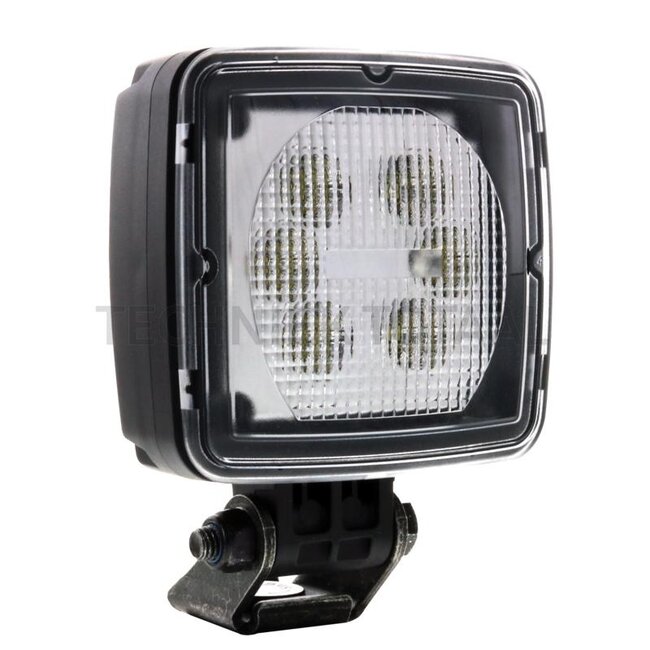

LED work light from Vignal with a power of 20 watts and a luminous flux of 1.500 lm, suitable for a nominal voltage of 12 / 24 V. The light is square, measures 102 x 97 x 63 mm and has a light colour of 6.000 K, with flood light as its light function. The housing is made of polycarbonate plastic and an aluminium heat sink, and the light has a 2-pin DT connector and a socket fixing. The protection class is IP68, IP69K. The bulb is included and has a current of 0,85 AMP / 24V.
| Article number | 19410481 |
|---|---|
| Weight | 540 g |
| Light colour | 6.000 K |

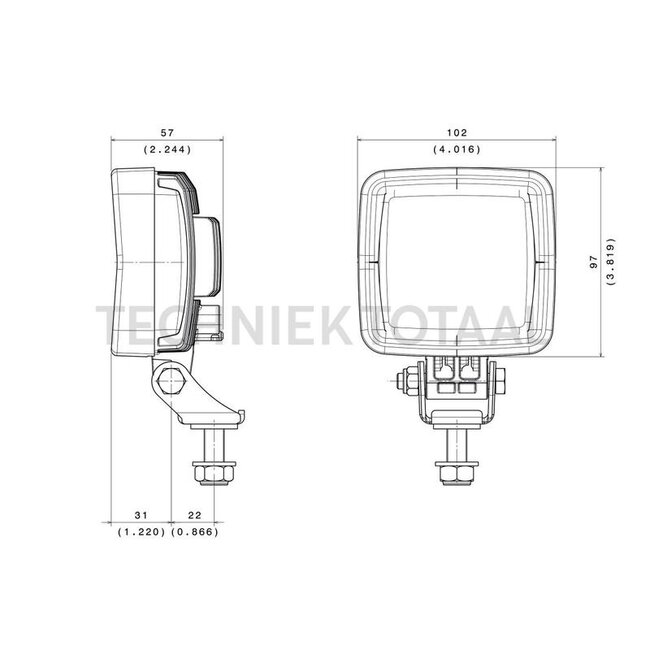

| Dimensions W x H x D | 102 x 97 x 63 mm |
| Bulb | LED |
| Protection class | IP68, IP69K |
| Bulbs included | yes |
| Current | 0,85 AMP / 24V |
| Power | 20 watts |
| Housing material | Plastic body and aluminium heat sink |
| Fixing | Base |
| Connection | DT 2-pin connector |
| Additional information | Geschützt gegen Verpolungen Volle Leistung bei +35°C Umgebungstemperatur, 25 % gedimmt bei + 50°C Umgebungstemperatur Salzsprühnebeltest: ISO 9227 Schwingungsfestigkeit: 15 Grms, von 24Hz bis 2000Hz Schlagfestigkeit: 60G Lebensdauer: 30.000 Betriebsstunden |
| Material | Polycarbonate |
| Test mark | ISO 13766 - ISO 14982 - ISO 12985 |
| Luminous flux | 1.500 lm |
| Nominal voltage | 12 / 24 V |
| EMC | CISPR25 Klasse 5 |
| Form | eckig |
| Light function | Flutlicht |
