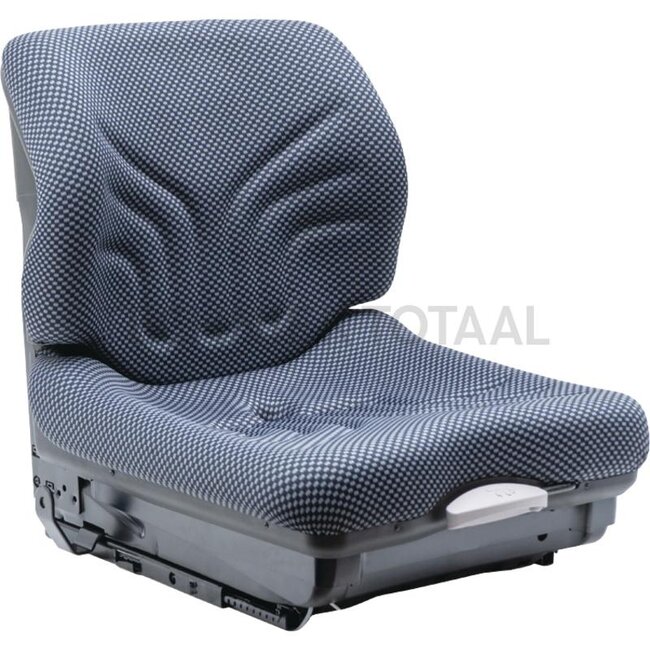

Name: GRAMMER Forklift seat MSG20 fabric, 470 mm, track width 330 mm BT | 50059295, 50004112, 61426860, 61403910, 61409360, 26909050, 50003370
Brand: GRAMMER
SKU: 11482989
Price: 730.20 EUR

GRAMMER Forklift seat MSG20 fabric, 470 mm, track width 330 mm BT | 50059295, 50004112, 61426860, 61403910, 61409360, 26909050, 50003370

€768,65

€730,20 Incl. 21% VAT

€603,47 Excl. VAT

In stock

Seat type: MSG20. Suspension: Mechanical. Upholstery type: Fabric. Seat contact switch: Yes. Track gauge: 330 mm. Seat width: 470 mm. Restraint system: Optional. Seat heater: Optional. Length: 598 mm. Height: 514 mm. Technical data: • Driver's seat with m Read more.

40.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.4/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

MSG20 MSG20

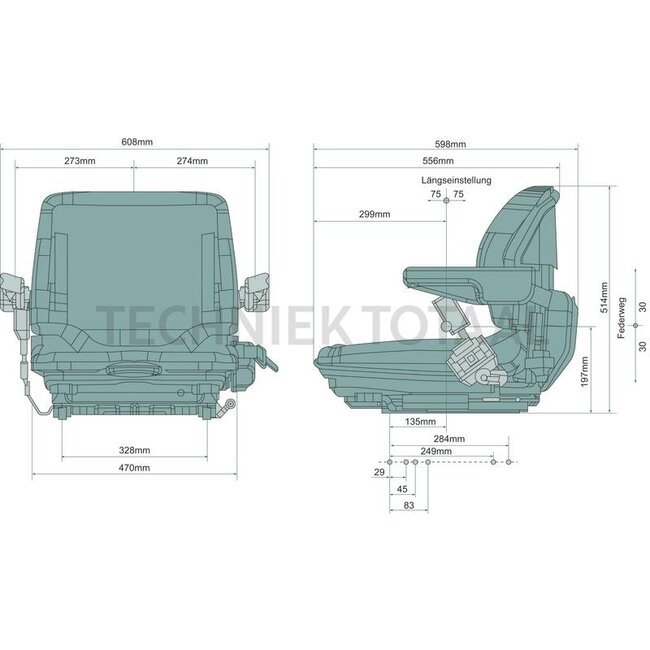

Seat type: MSG20

Suspension: Mechanical

Upholstery type: Fabric

Seat contact switch: Yes

Track gauge (mm): 330

Seat width (mm): 470

Restraint system: Optional

Seat heater: Optional

Length (mm): 598

Height (mm): 514

Technical data: • Driver's seat with mechanical suspension and hydraulic dampers
• Suspension travel 60 mm
• Mechanical weight adjustment in 9 steps (50 - 130 kg)
• Longitudinal adjustment 150 mm
• Backrest tilt adjustment via rocker in 4 steps of 10 degrees (tilt kinematics)
• Seat switch
• Seat cushion width: 470 mm
• Track gauge: 328 mm
• Cover: fabric blue black

Version: MSG 20 seats are designed for the vibrations experienced by forklifts, and offer a suspension travel of 60 mm plus a weight adjustment range of 50 to 130 kg. The individual weight adjustment ensures excellent suspension comfort. The seat can be positioned within a range of 150 mm or 210 mm, giving enough space for any body size and work situation.

Armrest: Optional

Passend voor:

Jungheinrich: 1293150, 05078806, 50058621, 26906980, 50045320, 50045321, 50055854, DFG, DFG 16 AK 05/1997 - 11/1998, DFG 16 AS 05/1997 - 11/1998, DFG 20 AK 05/1997 - 11/1998, DFG 20 AS 05/1997 - 11/1998, DFG 20 BK 05/1997 - 11/1998, DFG 20 BK 12/1998 - 10/2002, DFG 20 BS 05/1997 - 11/1998, DFG 20 BS 12/1998 - 10/2002, DFG 25 BK 05/1997 - 11/1998, DFG 25 BK 12/1998 - 10/2002, DFG 25 BS 05/1997 - 11/1998, DFG 25 BS 12/1998 - 10/2002, DFG 30 BK 05/1997 - 11/1998, DFG 30 BK 12/1998 - 10/2002, DFG 30 BS 05/1997 - 11/1998, DFG 30 BS 12/1998 - 10/2002, EFG, EFG DF12,5 11/1994 - 11/1995, EFG DF12,5 12/1995 - 04/1999, EFG DF15 11/1994 - 11/1995, EFG DF15 12/1995 - 04/1999, EFG DF16 11/1994 - 11/1995, EFG DF16 12/1995 - 04/1999, EFG DF18 11/1994 - 11/1995, EFG DF18 12/1995 - 04/1999, EFG DH12,5 05/1996 - 12/2002, EFG DH12,5 08/1994 - 11/1995, EFG DH12,5 12/1995 - 04/1996, EFG DH15 05/1996 - 12/2002, EFG DH15 08/1994 - 11/1995, EFG DH15 12/1995 - 04/1996, EFG-V16 03/1995 - 11/1995, EFG-V16 12/1995 - 05/1999, EFG-V20 03/1995 - 11/1995, EFG-V20 12/1995 - 05/1999, EFG-Vac25 05/1997 - 12/2001, EFG-Vac28 05/1997 - 12/2001, EFG-Vac30 05/1997 - 12/2001, ETM, ETM 12,5 07/1987 - 07/1988, ETM 16 07/1987 - 07/1988, ETM V10 01/1992 - 05/1993, ETM V10 01/1995 - 05/1996, ETM V10 05/1990 - 08/1990, ETM V10 06/1993 - 05/1994, ETM V10 06/1994 - 12/1994, ETM V10 06/1996 - 09/1997, ETM V10 09/1990 - 12/1991, ETM V10 10/1997 - 03/1999, ETM V10 12/1988 - 04/1990, ETM V12 01/1992 - 05/1993, ETM V12 01/1995 - 05/1996, ETM V12 05/1990 - 08/1990, ETM V12 06/1993 - 05/1994, ETM V12 06/1994 - 12/1994, ETM V12 06/1996 - 09/1997, ETM V12 09/1990 - 12/1991, ETM V12 10/1997 - 03/1999, ETM V12 12/1988 - 04/1990, ETM V12,5 11/1985 - 06/1987, ETM V13,5 01/1995 - 07/1995, ETM V13,5 02/1993 - 05/1994, ETM V13,5 03/1992 - 01/1993, ETM V13,5 04/1988 - 04/1990, ETM V13,5 05/1990 - 08/1990, ETM V13,5 06/1994 - 12/1994, ETM V13,5 09/1990 - 02/1992, ETM V14 05/1995 - 04/1999, ETM V16 01/1995 - 07/1995, ETM V16 02/1993 - 05/1994, ETM V16 03/1992 - 01/1993, ETM V16 04/1988 - 04/1990, ETM V16 05/1990 - 08/1990, ETM V16 05/1995 - 04/1999, ETM V16 06/1994 - 12/1994, ETM V16 09/1990 - 02/1992, ETM V16 11/1985 - 06/1987, ETM V20 01/1989 - 12/1990, ETM V20 01/1991 - 01/1993, ETM V20 02/1993 - 05/1994, ETM V20 GN 01/1995 - 04/1996, ETM V20 GN 05/1996 - 03/1999, ETM V20 GN 06/1994 - 12/1994, ETM V25 01/1989 - 12/1990, ETM V25 01/1991 - 01/1993, ETM V25 02/1993 - 05/1994, ETM V25 11/1985 - 02/1989, ETM V25 GN 01/1995 - 04/1996, ETM V25 GN 05/1996 - 03/1999, ETM V25 GN 06/1994 - 12/1994, ETM V110 04/1999 - 12/2005, ETM V112 04/1999 - 12/2005, ETM V114 04/1999 - 12/2005, ETM V214 05/1999 - 11/2003, ETM V216 05/1999 - 11/2003, ETM V220 04/1999 - 03/2000, ETM V320 04/1999 - 03/2000, ETM V325 04/1999 - 03/2000, ETV, ETV 12,5 (48V) 03/1985 - 04/1986, ETV 12,5 (48V) 11/1985 - 10/1987, ETV 12,5 07/1987 - 07/1988, ETV 16 (48V) 03/1985 - 04/1986, ETV 16 (48V) 11/1985 - 10/1987, ETV 16 07/1987 - 07/1988, ETV 20 (48V) 03/1985 - 04/1986, ETV 20 (48V) 11/1985 - 10/1987, ETV 20GN 02/1993 - 05/1994, ETV 20GN 04/1991 - 01/1993, ETV 25 (48V) 03/1985 - 04/1986, ETV 25 (48V) 11/1985 - 10/1987, ETV C16 07/1999 - 05/2008, ETV Q20 01/1991 - 12/1991, ETV Q20 01/1992 - 05/1994, ETV Q20 01/1995 - 09/1996, ETV Q20 04/1990 - 12/1990, ETV Q20 06/1994 - 12/1994, ETV Q20 08/1989 - 03/1990, ETV Q20 10/1996 - 12/2002, ETV Q25 01/1991 - 12/1991, ETV Q25 01/1992 - 05/1994, ETV Q25 01/1995 - 09/1996, ETV Q25 04/1990 - 12/1990, ETV Q25 06/1994 - 12/1994, ETV Q25 08/1989 - 03/1990, ETV Q25 10/1996 - 12/2002, ETX, ETX 100 07/1994 - 12/1996, FB, FB 14 (WR KOM) 05/1998 - 01/2001, FB 16 (WR KOM) 05/1998 - 01/2001, FB 20 (WR KOM) 05/1998 - 10/2000, TFG, TFG 16 AK 05/1997 - 11/1998, TFG 16 AS 05/1997 - 11/1998, TFG 20 AK 05/1997 - 11/1998, TFG 20 AS 05/1997 - 11/1998, TFG 20 BK 05/1997 - 11/1998, TFG 20 BK 12/1998 - 10/2002, TFG 20 BS 05/1997 - 11/1998, TFG 20 BS 12/1998 - 10/2002, TFG 25 BK 05/1997 - 11/1998, TFG 25 BK 12/1998 - 10/2002, TFG 25 BS 05/1997 - 11/1998, TFG 25 BS 12/1998 - 10/2002, TFG 30 BK 05/1997 - 11/1998, TFG 30 BK 12/1998 - 10/2002, TFG 30 BS 05/1997 - 11/1998, TFG 30 BS 12/1998 - 10/2002, TFG 40 CK 08/1999 - 12/2002, TFG 40 CS 08/1999 - 12/2002, TFG 45 CK 08/1999 - 12/2002, TFG 45 CS 08/1999 - 12/2002, TFG 50 CK 08/1999 - 12/2002, TFG 50 CS 08/1999 - 12/2002, WR, WR 14 (BOSS) 05/1998 - 10/2002, WR 14 (MIC) 05/1998 - 11/2002, WR 14 (STB) 05/1998 - 10/2002, WR 16 (BOSS) 05/1998 - 10/2002, WR 16 (MIC) 05/1998 - 11/2002, WR 16 (STB) 05/1998 - 10/2002, WR 20 (BOSS) 05/1998 - 05/2002, WR 20 (MIC) 05/1998 - 05/2002, WR 20 (STB) 05/1998 - 01/2002

BT: 1293150, 201535-001, RR M, RR M12 REFLEX (483) 435653 - 561099, RR M12 REFLEX (483) 561100 - 564299, RR M12 REFLEX (483) 564300 - 577199, RR M12 REFLEX (483) 577200 - 598438, RR M12 REFLEX (483) 598439 - 709568, RR M12C REFLEX (484) 435653 - 561099, RR M12C REFLEX (484) 561100 - 564299, RR M12C REFLEX (484) 564300 - 577199, RR M12C REFLEX (484) 577200 - 598438, RR M12C REFLEX (484) 598439 - 709568, RR M14 REFLEX (657) 435653 - 561099, RR M14 REFLEX (657) 561100 - 564299, RR M14 REFLEX (657) 564300 - 577199, RR M14 REFLEX (657) 577200 - 598438, RR M14 REFLEX (657) 598439 - 709568, RR M14C REFLEX (658) 435653 - 561099, RR M14C REFLEX (658) 561100 - 564299, RR M14C REFLEX (658) 564300 - 577199, RR M14C REFLEX (658) 577200 - 598438, RR M14C REFLEX (658) 598439 - 709568
