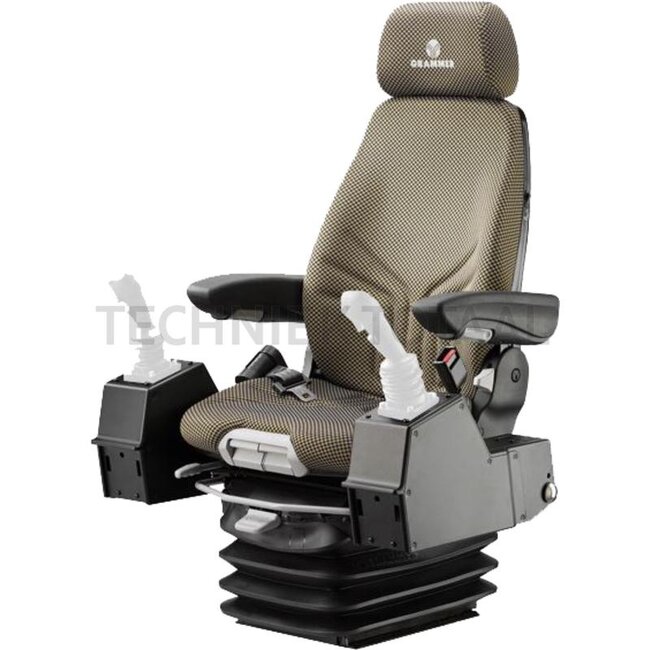

GRAMMER Actimo XL

MSG95A/722

Replaces: 1294570-12

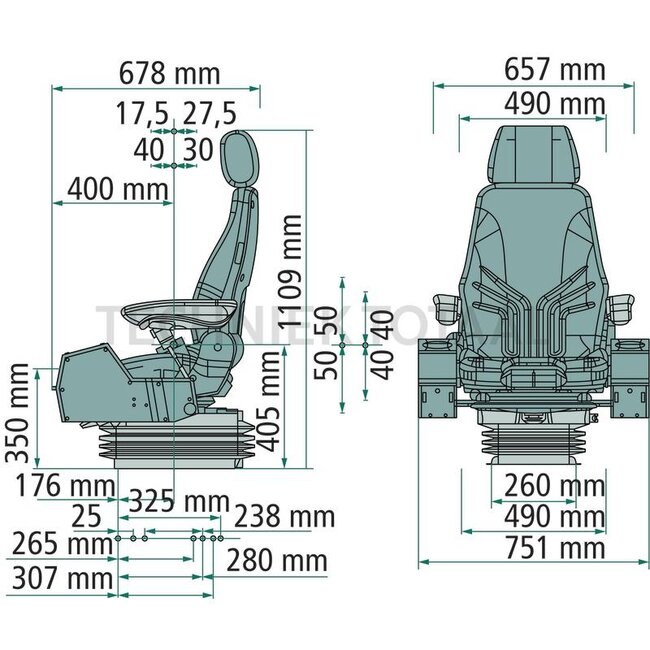

Technical data:

• Length (mm): 629
• Lordosenstütze: Mechanical
• Armrest: Yes
• • Super comfort seat with air suspension and 12V compressor • APS: automatic positioning system • Armrests, height adjustable and folding, 80 x 380 mm, tilt adjustable • Damper, not adjustable • Suspension travel 100 mm • Automatic weight adjustment 50 - 130 kg • Height adjustment 80 mm, continuous (air-assisted) • Headrest • Longitudinal adjustment 210 mm • Lockable fore/aft isolator • Mechanical lumbar support • Backrest and tilt adjustment • Restraint system • Seat heater • Seat cushion depth and tilt adjustment • Seat cushion width 490 mm • Seat contact switch • Control lever bracket
• Suspension: Air suspension
• Seat width (mm): 490
• Joystick console: Yes
• Track gauge (mm): 260
• On-board voltage (V): 12
• Seat type: MSG95A/722
• Seat heater: Yes
• Version: Standard seat with automatic positioning system Pneumatic suspension, automatic positioning system, adjustable damper, fore/aft isolator - the ACTIMO XL has all the features that guarantee excellent vibration comfort, therefore ensuring pleasant and fatigue-free sitting conditions. Thanks to the automatic weight adjustment, time-consuming seat adjustments to the driver's weight are also eliminated - a huge advantage when the machine is used by different people. ACTIMO XL STHT with control lever brackets GRAMMER offers the ACTIMO XL STHT with control lever bracket boxes especially for use in excavators. These allow the machine to be controlled comfortably. The controls for this seat are located at the front for easy accessibility<b>(joysticks not included)</b>.
• Gauge: 260
• Seat contact switch: Yes
• Restraint system: Yes
• Rückenverlängerung: Yes
• Height (mm): 1076
• Upholstery type: Fabric
• Fore/aft isolator: Yes
