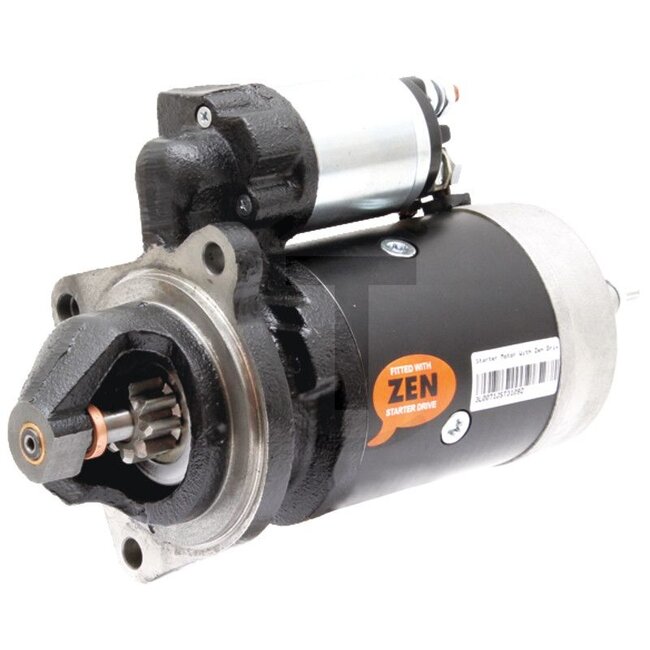

GRANIT Starter motor 12V 2.4 kW 9 teeth clockwise

Replaces: F032110813, DEM103, 110813

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 2.4
• No. of pinion teeth: 9
• Holes / PCD (mm): 3 x 12.2 / 146.0
• Spacing flange to flywheel (mm): 27.0
• Installation length (mm): 223.5
• Fitting Ø (mm): 110.0
• Installation angle (°): l 60
• Direction of rotation: clockwise
