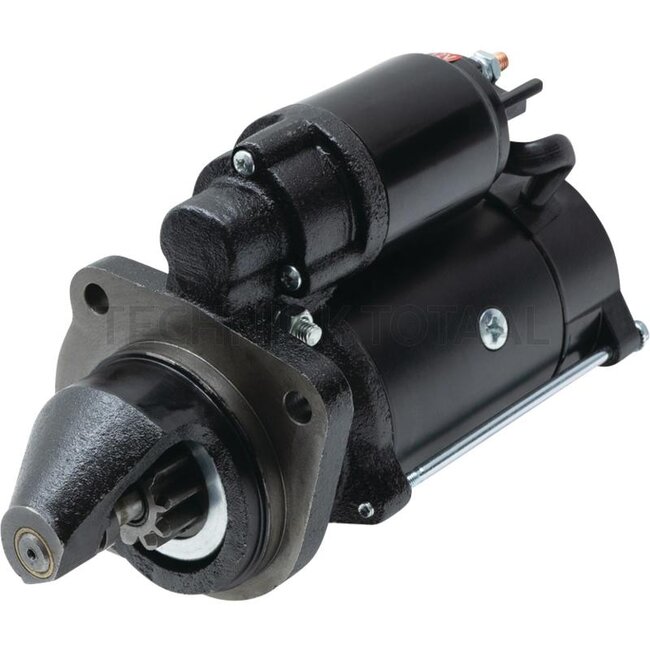

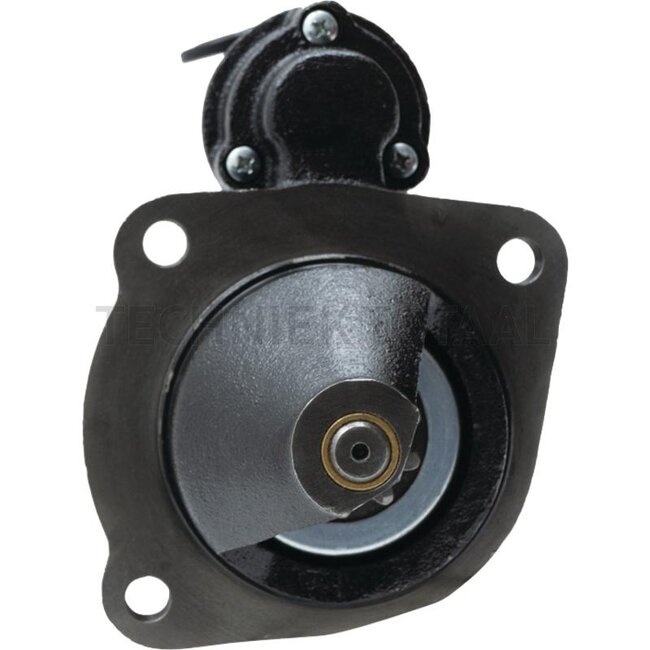

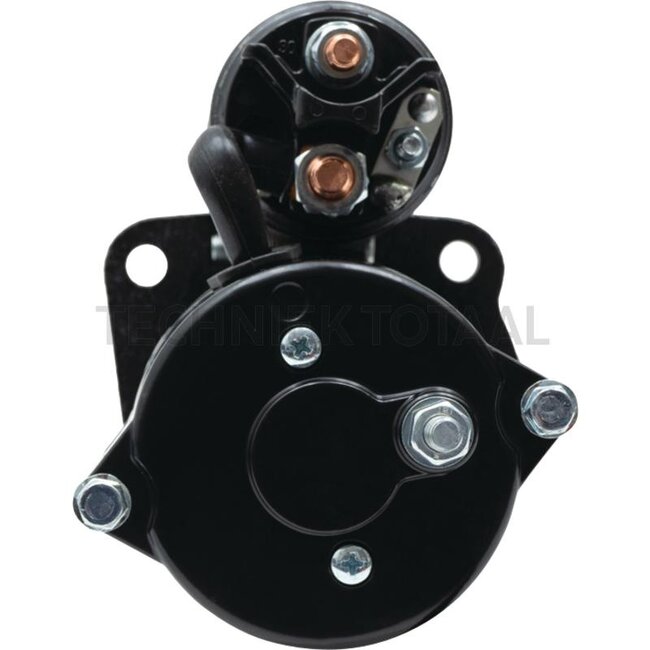

GRANIT Starter motor with reduction gear 12V 3.2 kW 10 teeth clockwise

Replaces: 3763362M94; 379IS1201, SGIS1201

Technical data:

Nominal voltage (V): 12
Nominal power (kW): 3.2
No. of pinion teeth: 10
Holes / PCD (mm): 3 x 11.0 / 127.0
Spacing flange to flywheel (mm): 29.0
Installation length (mm): 226.0
Fitting Ø (mm): 89.0
Installation angle (°): l 42
Direction of rotation: clockwise

Suitable for:

JCB: 407 ZX (Perkins 1104C.44), 408 ZX (Perkins 1104C.44), 409 (Perkins 1004.4), 409 ZX (Perkins 1104C.44), 525-50 (Perkins 1004), 525-50 LE (Perkins 1104), 530-70 (Perkins 1004-40T), 530-70 (Perkins 1104T), 535-60 (Perkins 1104C-44T), 535-125 (Perkins 1104 T), 535-140 (1104C-44T), 540 (Perkins 1104C-44T)

Lindner: Geotrac 50, Geotrac 60, Geotrac 63, Geotrac 64, Geotrac 65, Geotrac 70, Geotrac 73, Geotrac 74, Geotrac 75, Geotrac 80, Geotrac 85

Massey Ferguson: 261, 270, 290, 298, 283, 375, 383, 390, 398, 399, 365, 471, 481, 575, 590, 670, 675, 690, 698, 699, 1004, 3050, 3055, 3060, 3065, 3070, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4270
